OFF BOARD - UNDERMOUNT

Como

Minimal canopy design. Professional extraction performance.

Como is a wall-mounted stainless steel canopy rangehood designed for strong, reliable extraction in a clean, linear form. Built in durable Scotch-Brite AISI 304 stainless steel, it delivers a professional look with everyday practicality. Powered by an off-board motor system, the fan is installed externally to reduce noise in the kitchen while maintaining high extraction efficiency.

The difference between models is depth: Como 90 offers a more compact profile for lighter, space-conscious installations. Como 90 Deep provides increased depth for improved capture over larger or more intensive cooking setups. Both versions include LED lighting, baffle filters, and touch controls with boost and timer functions, designed for easy use and maintenance. Ideal for kitchens that need high-performance extraction with a simple, architectural stainless steel finish.

90 FC3CO90S1
90 Deep

TECHNICAL SPECIFICATIONS

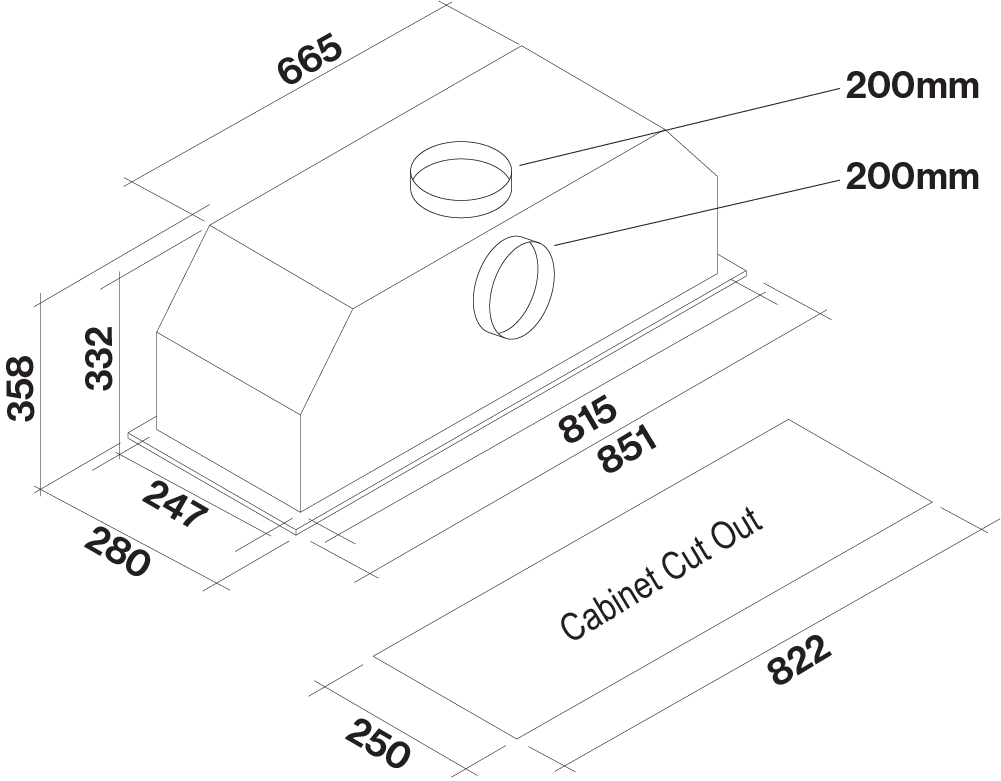

  • Dimensions (WxDxH): 851 x 280 x 358mm
  • Cut-Out Size: 822 x 250
  • Ducting: 200mm circular outlet (6m of Q6 duct supplied)
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 765m3/h | 1140m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes:
    FC3CO90S1-IR765 (765m3/hr - In Roof Motor)
    FC3CO90S1-ER765 (765m3/hr - External Roof Motor)
    FC3CO90S1-EW765 (765m3/hr - External Wall Motor)
    FC3CO90S1-IR1140 (1140m3/hr - In Roof Motor)
    FC3CO90S1-ER1140 (1140m3/hr - External Roof Motor)
    FC3CO90S1-EW1140 (1140m3/hr - External Wall Motor)

CONSUMPTION

  • Maximum Power:
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: External Installation Kit, Q6 Duct Extensions, Roundback Draft Damper, Wireless Remote

TECHNICAL SPECIFICATIONS

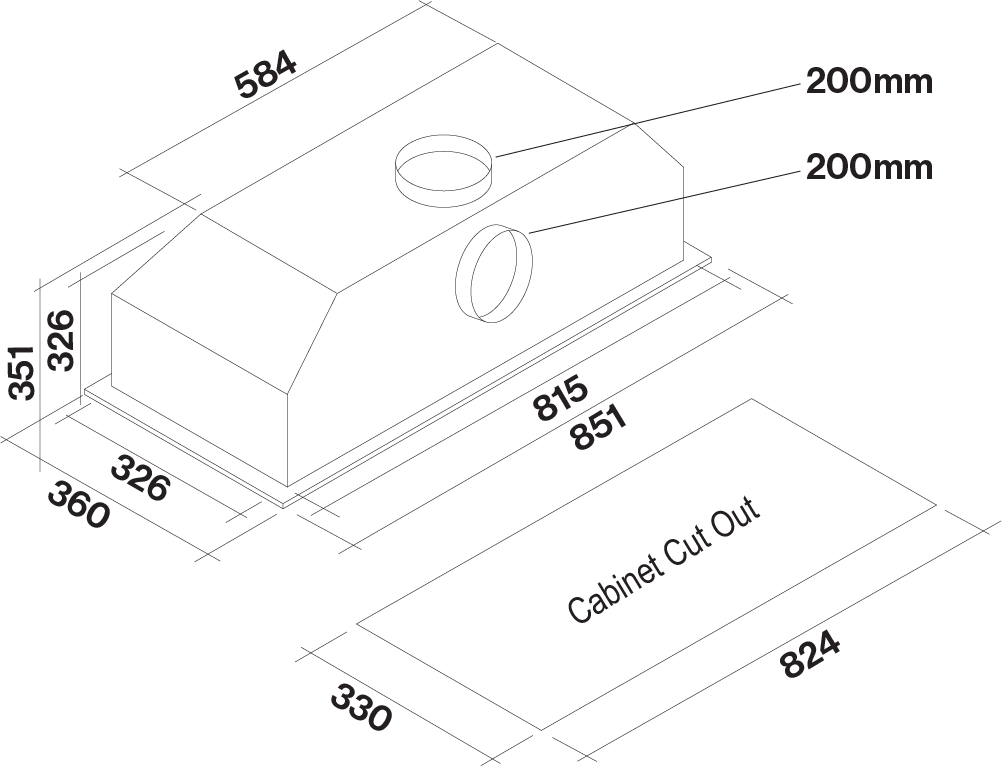

  • Dimensions (WxDxH): 851 x 360 x 351mm
  • Cut-Out Size: 824 x 330
  • Ducting: 200mm circular outlet (6m of Q6 duct supplied)
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 1140m3/h | 2010m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes:
    FC3COD90S1-IR1140 (1140m3/hr - In Roof Motor)
    FC3COD90S1-ER1140 (1140m3/hr - External Roof Motor)
    FC3COD90S1-EW1140 (1140m3/hr - External Wall Motor)
    FC3COD90S1-ER2010 (2010m3/hr - External Roof Motor)
    FC3COD90S1-EW2010 (2010m3/hr - External Wall Motor)

CONSUMPTION

  • Maximum Power:
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: External Installation Kit, Q6 Duct Extensions, Roundback Draft Damper, Wireless Remote
