OFF BOARD - DOWNDRAFT

Downdraft

Technology in motion.

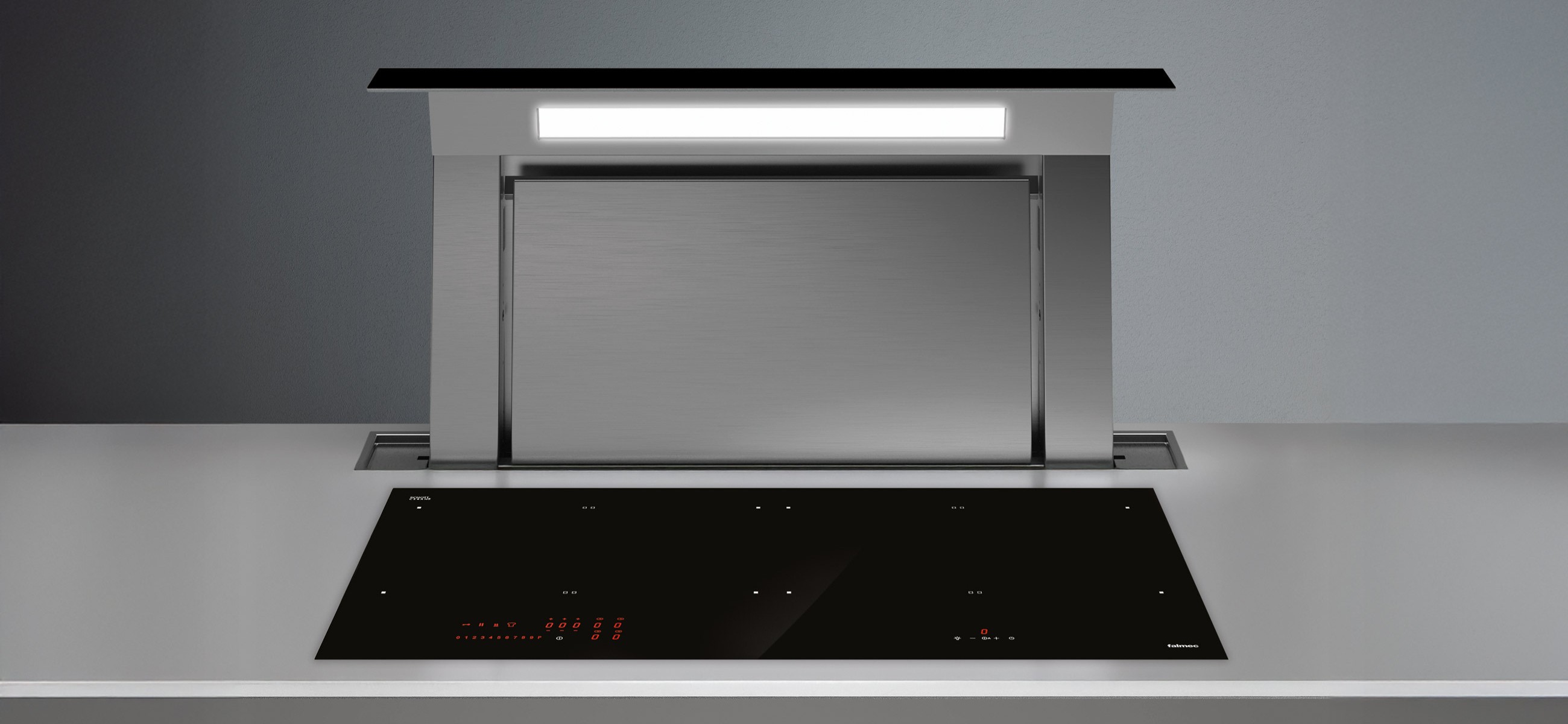

A motorised system allows for the hood to be extracted from behind the worktop, capturing fumes and vapour as they are released from the top of the kitchenware. This solution also guarantees correct lighting of the cooking area, high suction performance and, thanks to various options regarding motors and installation types, optimal use of space inside the counter.

The hood can also be controlled directly from the Falmec induction hob using Dialogue System technology with its automatic function, thus optimising ease of interaction.

F8DD90B1
F8DD90B1
F8DD90B1

TECHNICAL SPECIFICATIONS

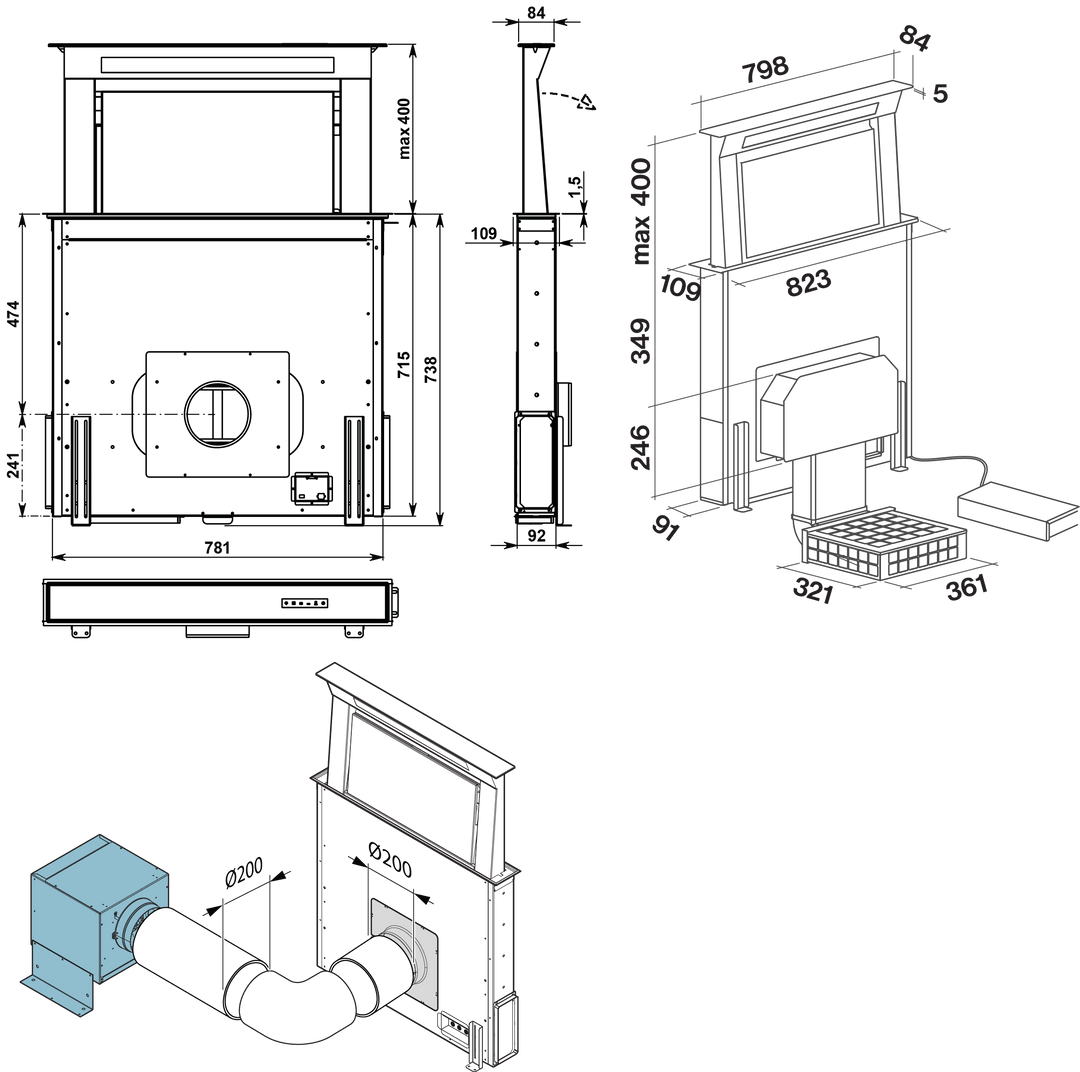

  • Dimensions (WxDxH): 798 x 84 x 400mm
  • Cut-Out Size: 810 x 98mm
  • Ducting: 200mm circular outlet (6m of Q6 duct supplied)
  • Cooking Surface Size: 50-90cm cooking surface
  • Motor Speeds Available: 600m3/h | 1000m3/h | 1300m3/h
  • Finishes: Scotch brite stainless steel (AISI 304) Black tempered glass
  • Controls: Electronic control
  • Model Codes:
    F8DD90B1-UC600 (600m3/h)
    F8DD90B1-EW1000 (1000m3/h)
    F8DD90B1-IN1300 (1300m3/h)

CONSUMPTION

  • Maximum Power: 30 W
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: Carbon.Zeo Filter

TECHNICAL SPECIFICATIONS

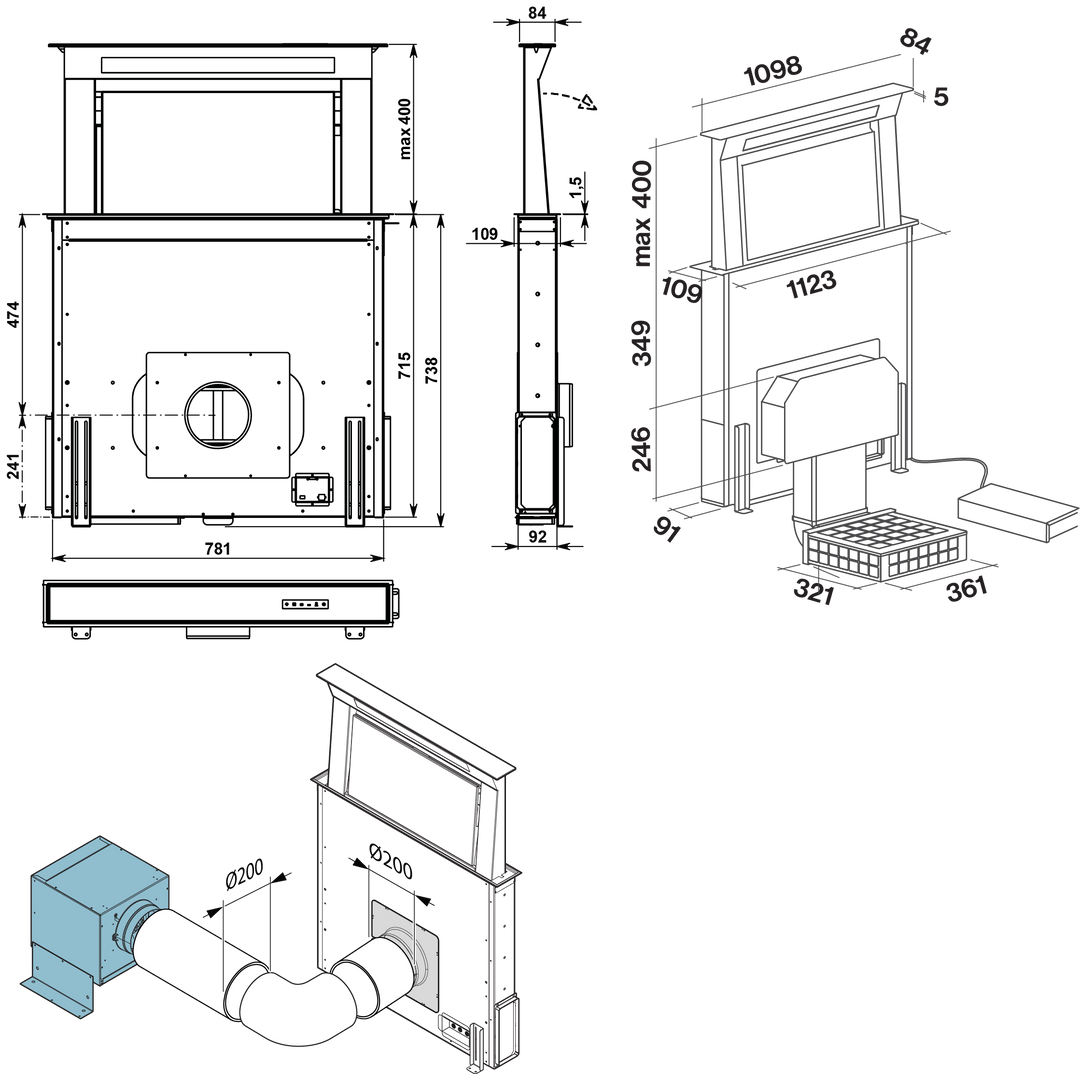

  • Dimensions (WxDxH): 1098 x 84 x 400mm
  • Cut-Out Size: 1110 x 98mm
  • Ducting: 200mm circular outlet (6m of Q6 duct supplied)
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 600m3/h | 1000m3/h | 1300m3/h
  • Finishes: Scotch brite stainless steel (AISI 304) Black tempered glass
  • Controls: Electronic control
  • Model Codes:
    F8DD12B1-UC600 (600m3/h)
    F8DD12B1-EW1000 (1000m3/h)
    F8DD12B1-IN1300 (1300m3/h)

CONSUMPTION

  • Maximum Power: 30 W
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: Carbon.Zeo Filter

Downloadables
