Lanzo

Compact canopy design. Integrated performance.

Lanzo is a wall-mounted stainless steel canopy rangehood designed for efficient everyday extraction in a clean, compact form. Built in Scotch-Brite finished AISI 304 stainless steel, it delivers durability, easy maintenance and a professional kitchen aesthetic. Unlike off-board systems, Lanzo features an integrated (on-board) motor, providing a simpler installation while still delivering reliable extraction performance for everyday cooking.

Control is managed through touch operation with multiple speeds plus a 24-hour air exchange function, helping maintain ongoing kitchen ventilation beyond active cooking. Stainless steel baffle filters ensure effective grease capture and long-term durability, and are easily removable for cleaning. Integrated LED lighting provides clear, even illumination across the cooktop.

The difference between models is size: Lanzo 60 suits compact cooktops and smaller kitchen layouts. Lanzo 90 provides wider coverage for larger cooking surfaces. Lanzo is ideal for kitchens that want professional stainless steel design with straightforward, integrated performance and simple installation.

FC3LN60S1
FC3LN90S1

TECHNICAL SPECIFICATIONS

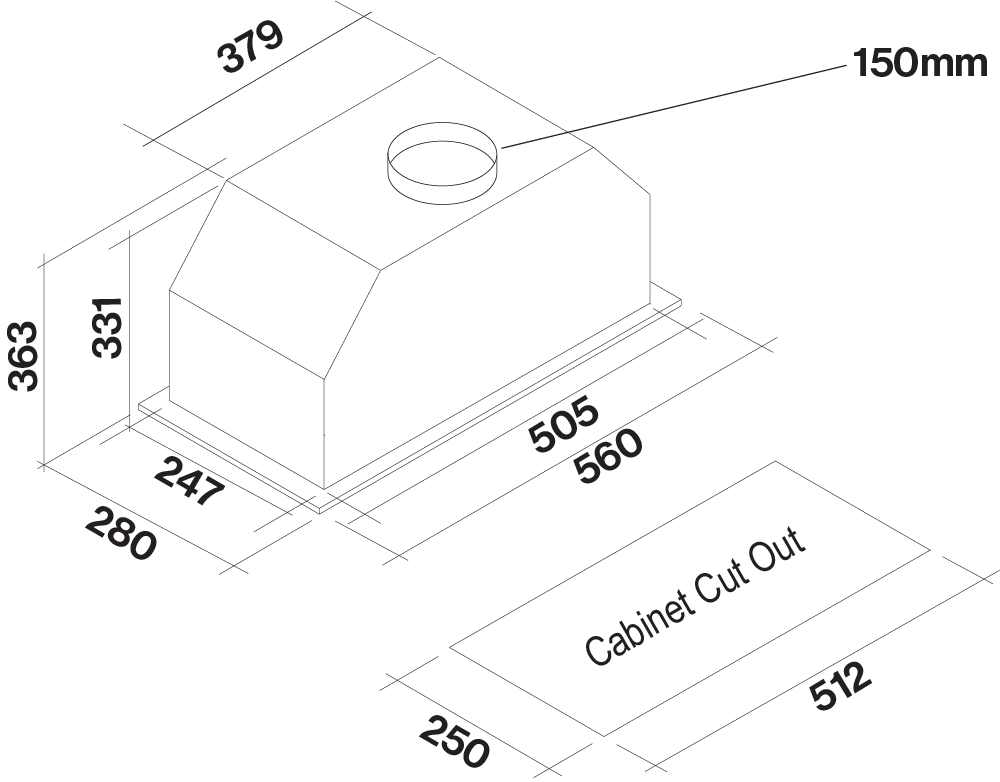

  • Dimensions (WxDxH): 560 x 280 x 363mm
  • Cut-Out Size: 512 x 250mm
  • Ducting: 150mm circular outlet
  • Cooking Surface Size: 50-70cm cooking surface
  • Motor Speeds Available: 950m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes: FC3LN60S1

CONSUMPTION

  • Maximum Power:
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: Remote control

TECHNICAL SPECIFICATIONS

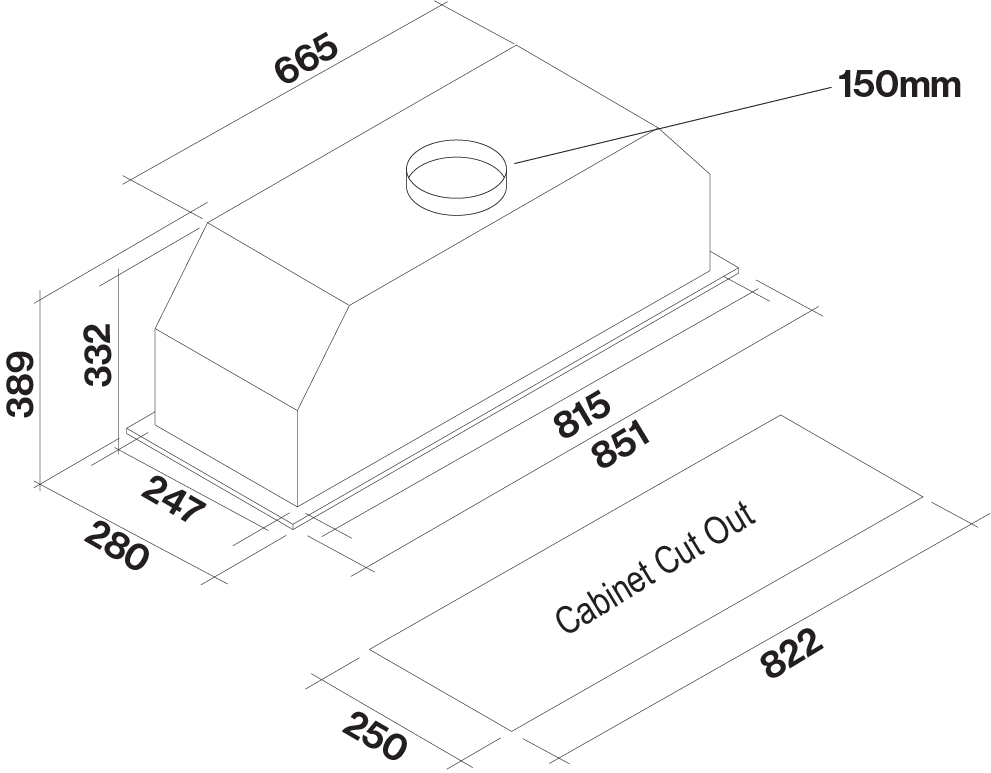

  • Dimensions (WxDxH): 851 x 280 x 389mm
  • Cut-Out Size: 822 x 250mm
  • Ducting: 150mm circular outlet
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 950m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes: FC3LN90S1

CONSUMPTION

  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: Remote control
