ON BOARD - T-SHAPE

Lumen

Timeless design.

One of Falmec's most famous models, with its sleek, technical, and ever-fashionable design, as well as a distinctive visible steel filter, Lumen continues to stand the test of time. An illuminated line on its front provides your kitchen with a pleasant lighting effect. A powerful motor, with an electronic push-button panel, guarantees excellent suction performance. In addition, the exclusive NRS (Noise Reduction System) technology-equipped version of this hood reduces noise to an absolute minimum.

F7LM90S1
F7LM90S1
F5LM90S1

TECHNICAL SPECIFICATIONS

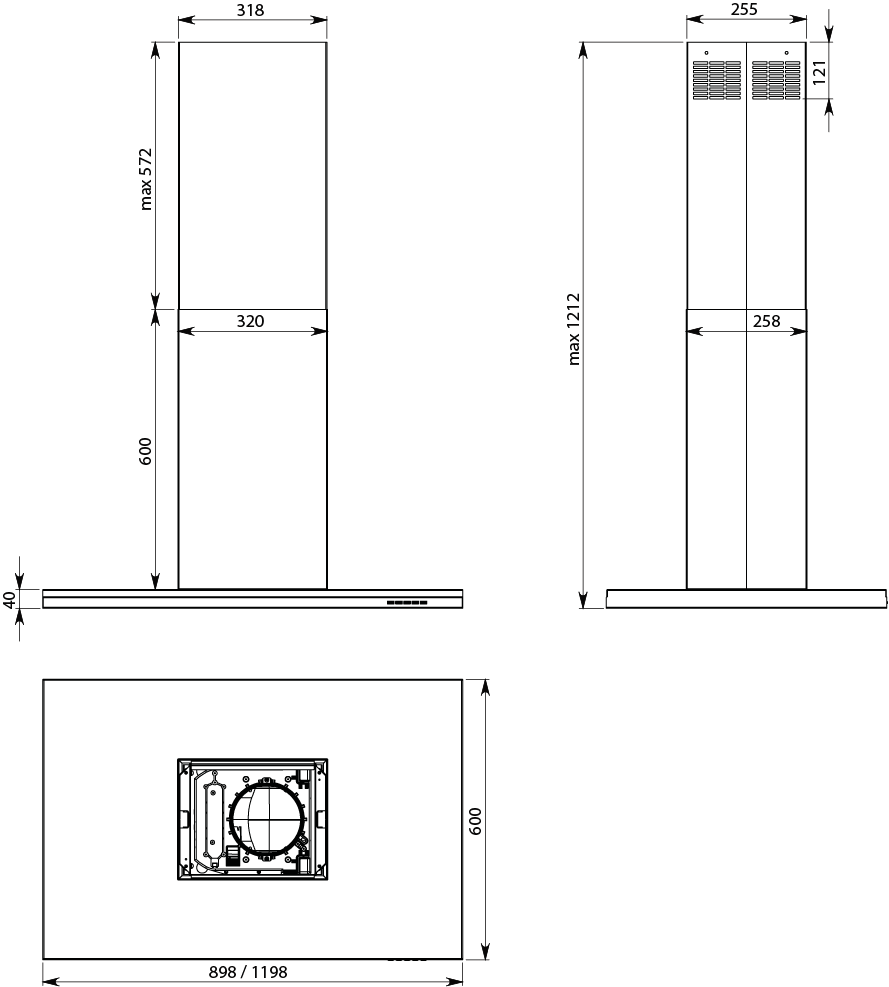

  • Dimensions (WxDxH): 898 x 600 x 1212mm
  • Cut-Out Size: N/A
  • Ducting: 150mm circular outlet
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 800m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes: F7LM90S1

CONSUMPTION

  • Maximum Power: 320 W
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: Charcoal Filter

TECHNICAL SPECIFICATIONS

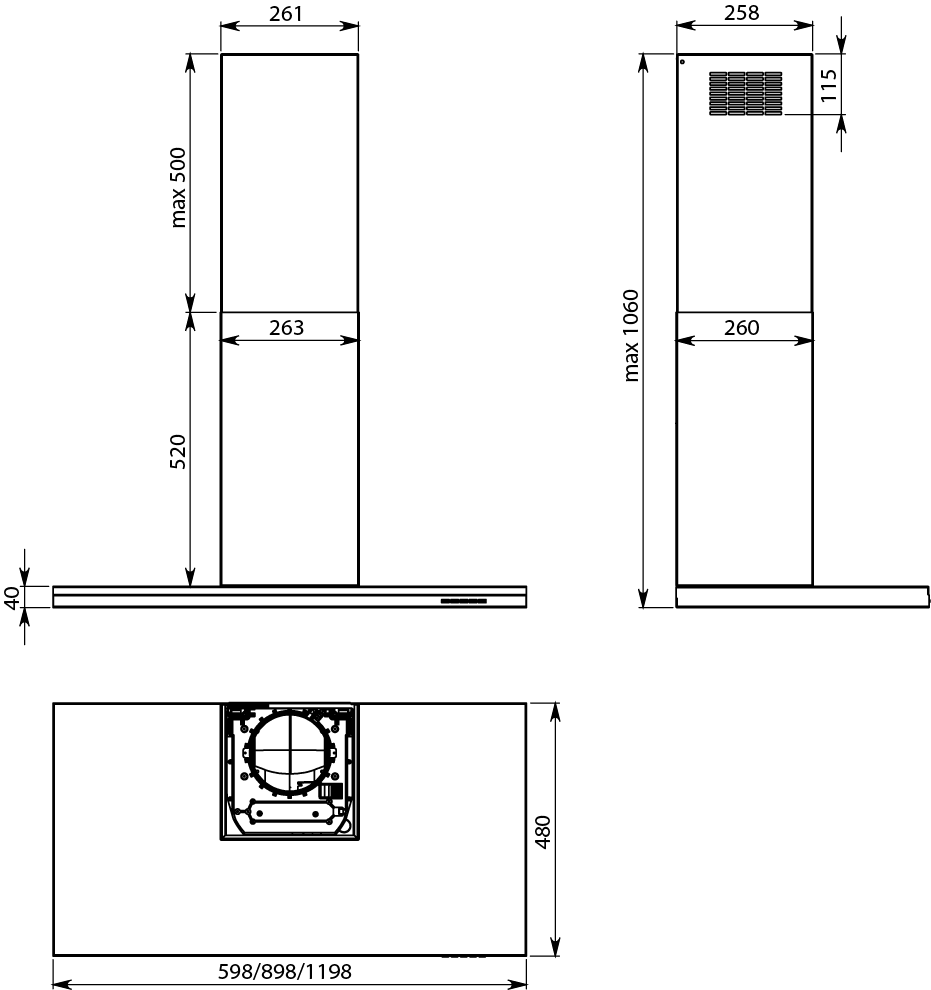

  • Dimensions (WxDxH): 598 x 480 x 1060mm
  • Cut-Out Size: N/A
  • Ducting: 150mm circular outlet
  • Cooking Surface Size: 50-75cm cooking surface
  • Motor Speeds Available: 800m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes: F5LM60S1

CONSUMPTION

  • Maximum Power: 320 W
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: Charcoal Filter

TECHNICAL SPECIFICATIONS

  • Dimensions (WxDxH): 898 x 1060 x 480mm
  • Cut-Out Size: N/A
  • Ducting: 150mm circular outlet
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 800m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes: F5LM90S1

CONSUMPTION

  • Maximum Power: 320 W
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: Charcoal Filter
