OFF BOARD - UNDERMOUNT

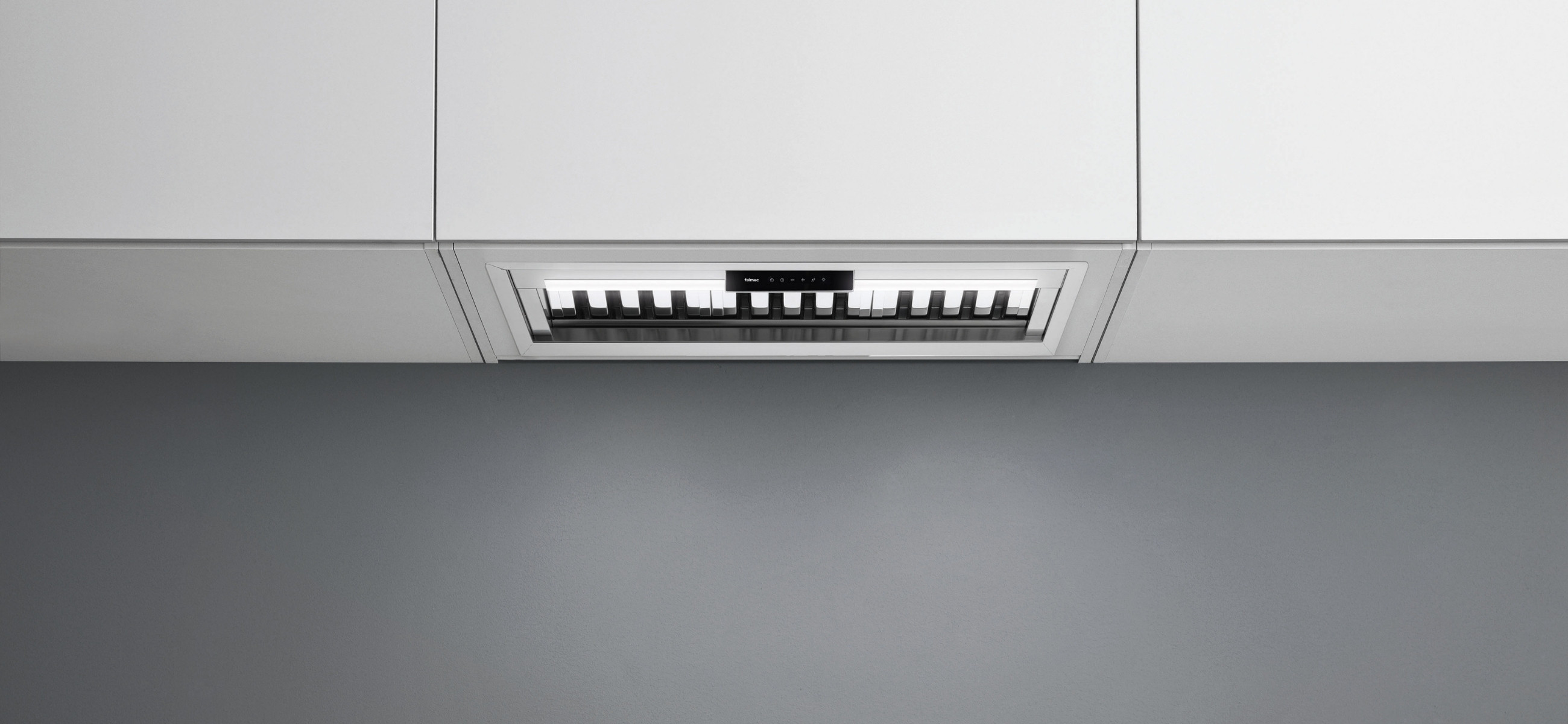

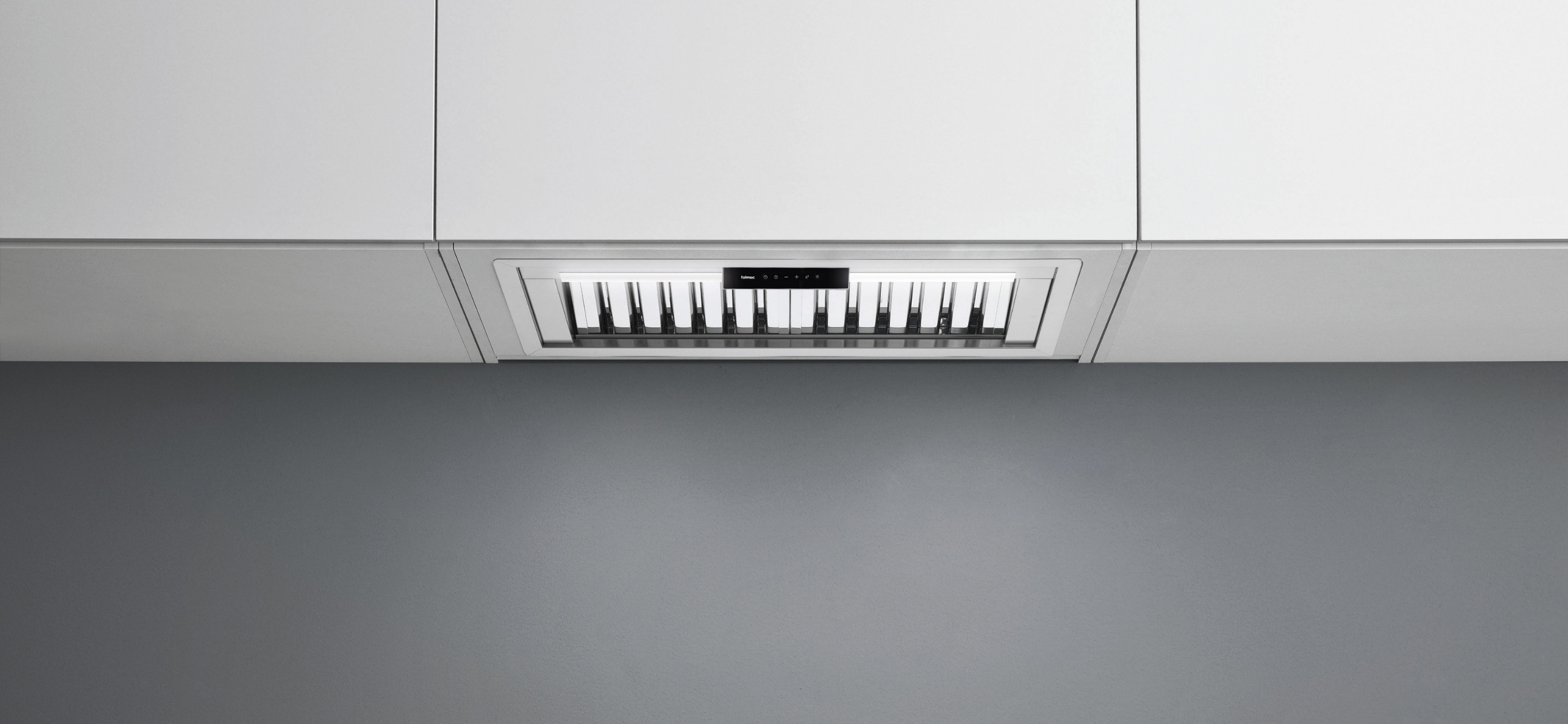

Milano+

Contemporary style. Everyday performance.

Milano+ blends modern design with practical functionality, making it a versatile addition to a wide range of kitchen styles. Its clean lines and refined finish create a subtle statement, designed to integrate effortlessly into both contemporary and transitional spaces. Engineered for reliable extraction, Milano+ efficiently removes steam, grease and odours, helping maintain a fresh and comfortable cooking environment. Intuitive controls ensure ease of use, while durable materials are built to withstand everyday wear and tear.

Integrated LED lighting provides bright, even illumination across the cooktop, enhancing both visibility and ambience. Available in multiple sizes and configurations, Milano+ delivers a balanced combination of style, performance and practicality for everyday cooking.

FP3MLD12S2
FP3ML60S2 | FP3ML90S2 | FP3MLD90S2
FP3MLD12S2

TECHNICAL SPECIFICATIONS

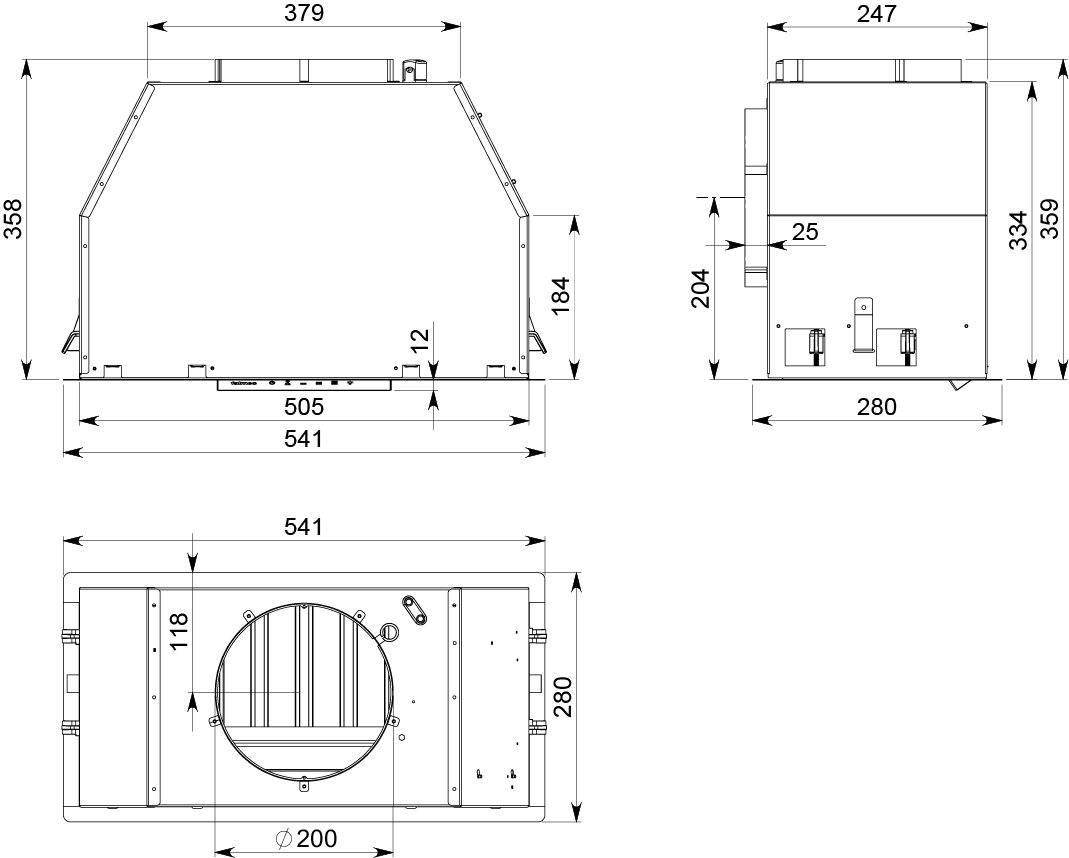

  • Dimensions (WxDxH): 541 x 280 x 358mm
  • Cut-Out Size: 512 x 250mm
  • Ducting: 200mm circular outlet (6m of Q6 duct supplied)
  • Cooking Surface Size: 50-70cm cooking surface
  • Motor Speeds Available: 765m3/h | 1140m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes:
    FP3ML60S2-IR765 (765m3/hr - In Roof Motor)
    FP3ML60S2-ER765 (765m3/hr - External Roof Motor)
    FP3ML60S2-EW765 (765m3/hr - External Wall Motor)
    FP3ML60S2-IR1140 (1140m3/hr - In Roof Motor)
    FP3ML60S2-ER1140 (1140m3/hr - External Roof Motor)
    FP3ML60S2-EW1140 (1140m3/hr - External Wall Motor)

CONSUMPTION

  • Maximum Power:
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: External Installation Kit, Q6 Duct Extensions, Roundback Draft Damper, Wireless Remote

TECHNICAL SPECIFICATIONS

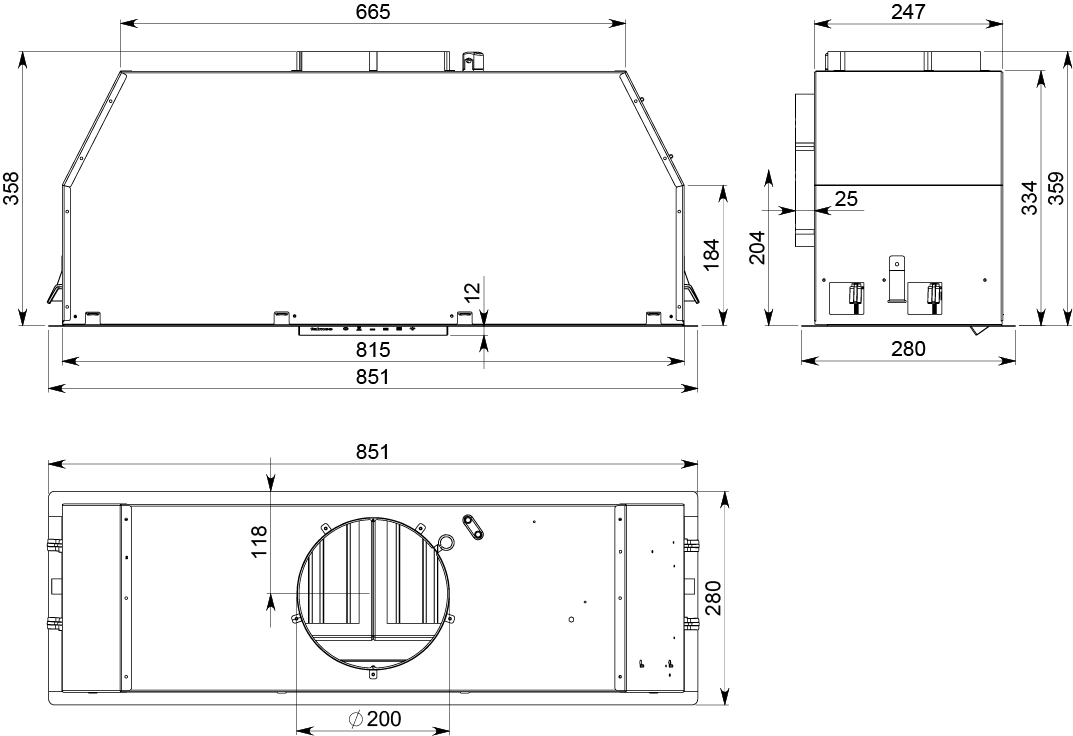

  • Dimensions (WxDxH): 851 x 280 x 358mm
  • Cut-Out Size: 822 x 250mm
  • Ducting: 200mm circular outlet (6m of Q6 duct supplied)
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 765m3/h | 1140m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes:
    FP3ML90S2-IR765 (765m3/hr - In Roof Motor)
    FP3ML90S2-ER765 (765m3/hr - External Roof Motor)
    FP3ML90S2-EW765 (765m3/hr - External Wall Motor)
    FP3ML90S2-IR1140 (1140m3/hr - In Roof Motor)
    FP3ML90S2-ER1140 (1140m3/hr - External Roof Motor)
    FP3ML90S2-EW1140 (1140m3/hr - External Wall Motor)

CONSUMPTION

  • Maximum Power:
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: External Installation Kit, Q6 Duct Extensions, Roundback Draft Damper, Wireless Remote

TECHNICAL SPECIFICATIONS

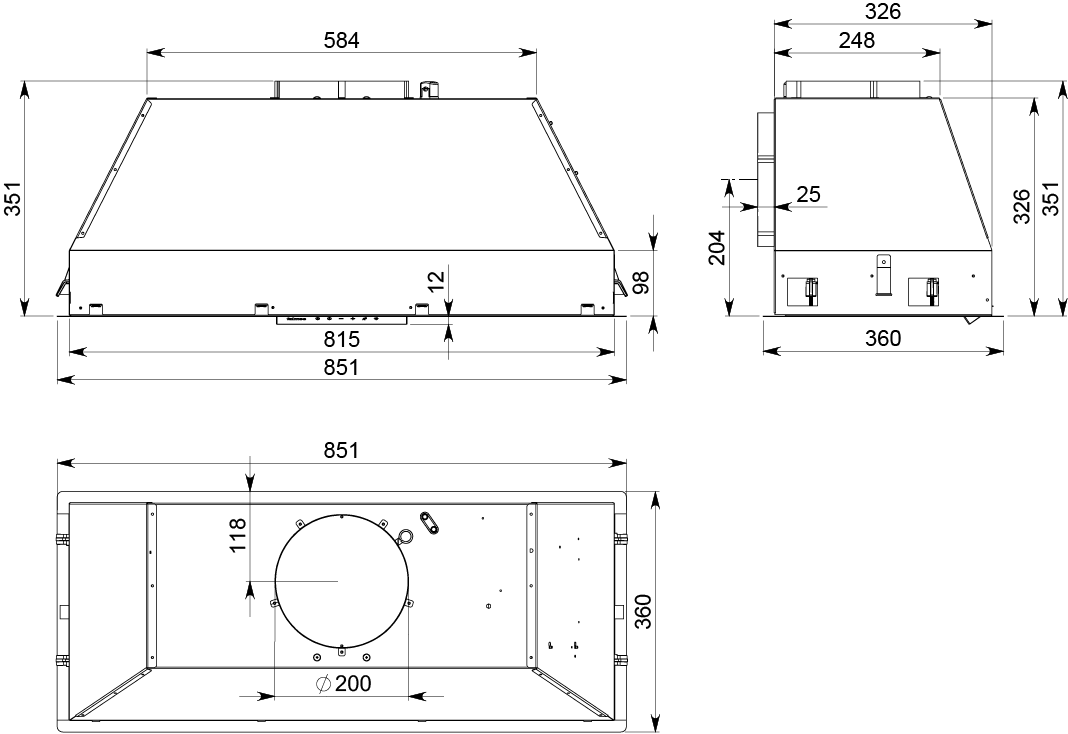

  • Dimensions (WxDxH): 851 x 360 x 351mm
  • Cut-Out Size: 824 x 330mm
  • Ducting: 200mm circular outlet (6m of Q6 duct supplied)
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 1140m3/h | 2010m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes:
    FP3MLD90S2-IR1140 (1140m3/hr - In Roof Motor)
    FP3MLD90S2-ER1140 (1140m3/hr - External Roof Motor)
    FP3MLD90S2-EW1140 (1140m3/hr - External Wall Motor)
    FP3MLD90S2-ER2010 (2010m3/hr - External Roof Motor)
    FP3MLD90S2-ER2010 (2010m3/hr - External Wall Motor)

CONSUMPTION

  • Maximum Power:
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: External Installation Kit, Q6 Duct Extensions, Roundback Draft Damper, Wireless Remote

TECHNICAL SPECIFICATIONS

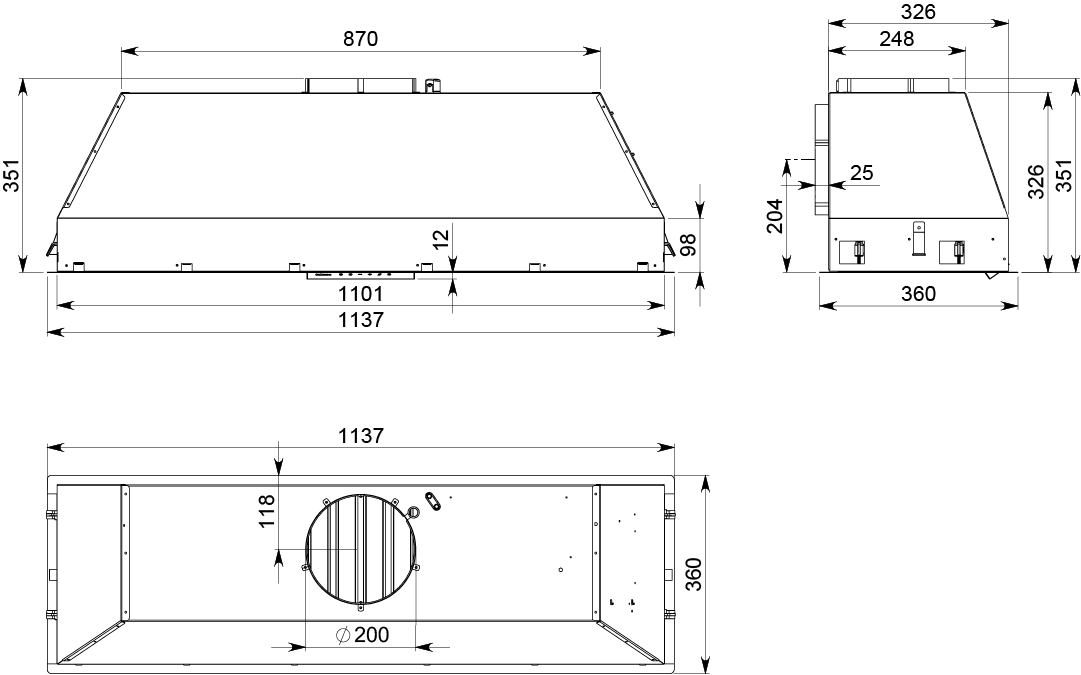

  • Dimensions (WxDxH): 1137 x 360 x 351mm
  • Cut-Out Size: 1110 x 330mm
  • Ducting: 200mm circular outlet (6m of Q6 duct supplied)
  • Cooking Surface Size: 90-130cm cooking surface
  • Motor Speeds Available: 1140m3/h | 2010m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes:
    FP3MLD12S2-IR1140 (1140m3/hr - In Roof Motor)
    FP3MLD12S2-ER1140 (1140m3/hr - External Roof Motor)
    FP3MLD12S2-EW1140 (1140m3/hr - External Wall Motor)
    FP3MLD12S2-ER2010 (2010m3/hr - External Roof Motor)
    FP3MLD12S2-ER2010 (2010m3/hr - External Wall Motor)

CONSUMPTION

  • Maximum Power:
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: External Installation Kit, Q6 Duct Extensions, Roundback Draft Damper, Wireless Remote
