ON BOARD - T-SHAPE

Plane No-Drop

Functionality meets aesthetics.

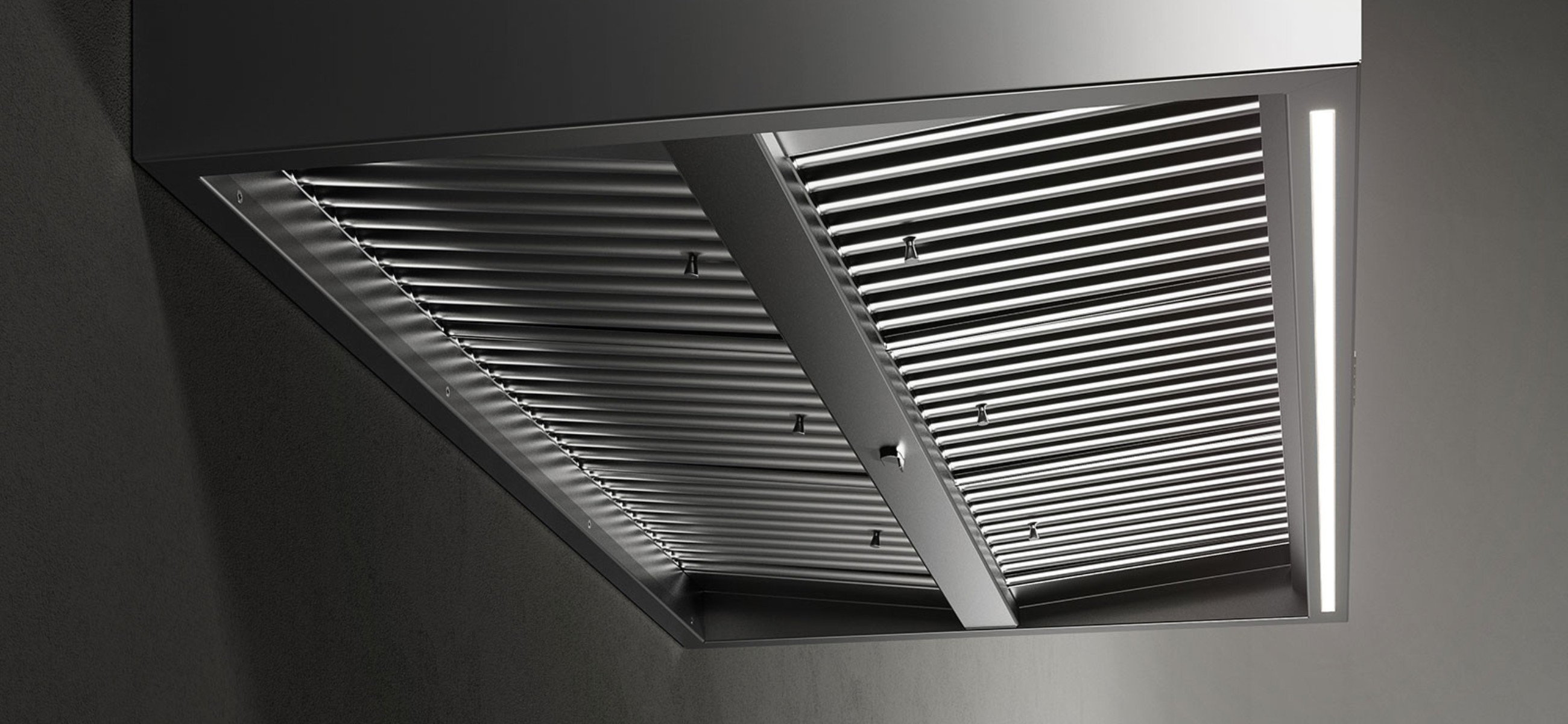

The plane is characterised by clean shapes and useful features, including a hood designed for a range of environments. Plane's value lies in its perfectly constructed details: an object that combines functionality with a clean, minimal design and that is available in various finishes. A perimeter suction panel not only guarantees stylistic precision, but also improves suction performance and ease of maintenance.

The cooking area is excellently illuminated by LED strips equipped with dynamic, dimmable lighting in order to create the right atmosphere at all times. This is combined with Falmec's exclusive innovations, thus improving quality of life in the kitchen: from its absolutely silent NRS system, to the No Drop anti-condensation system.

F5PND90S1
F7PND90S1
F5PND90S1

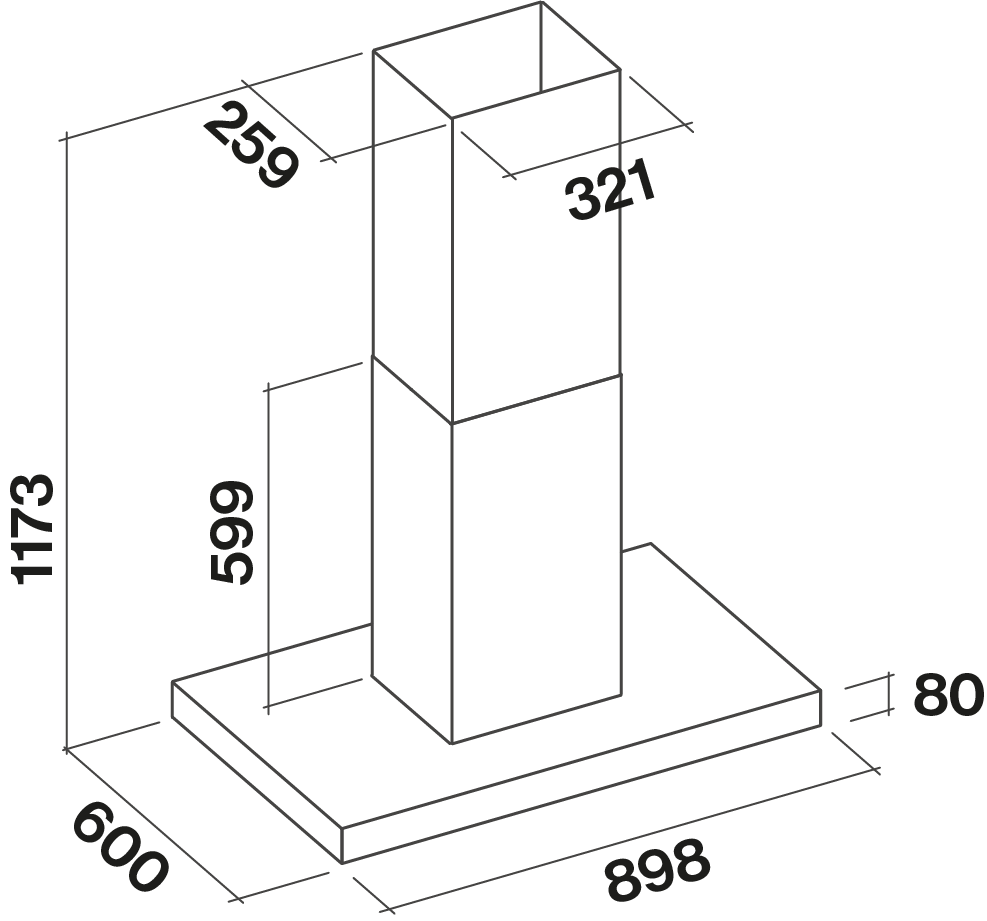

TECHNICAL SPECIFICATIONS

  • Dimensions (WxDxH): 898 x 600 x 1173mm
  • Cut-Out Size: N/A
  • Ducting: 150mm circular outlet
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 800m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes: F7PND90S1

CONSUMPTION

  • Maximum Power: 280 W
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: Charcoal Filter

TECHNICAL SPECIFICATIONS

  • Dimensions (WxDxH): 898 x 600 x 1119mm
  • Cut-Out Size: N/A
  • Ducting: 150mm circular outlet
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 800m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes: F5PND90S1

CONSUMPTION

  • Maximum Power: 320 W
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: Charcoal Filter, Flue Extension
