ON BOARD - T-SHAPE

Plane Plus

Clean lines. Powerful performance.

Plane Plus is defined by its minimalist aesthetic and dependable extraction, making it a versatile solution for modern kitchens. Its streamlined design integrates effortlessly into cabinetry, creating a clean, architectural look that complements a wide range of interior styles. Engineered for efficient performance, Plane Plus effectively removes steam, grease and odours to maintain a fresh and comfortable cooking environment. Perimeter suction enhances extraction efficiency, while easy-to-clean filters ensure simple, everyday maintenance.

User-friendly controls provide intuitive operation, and integrated LED lighting delivers bright, even illumination across the cooktop—enhancing both functionality and ambience. Available in both wall and island configurations, Plane Plus offers a balance of simplicity, performance and practicality for everyday cooking.

F7PB90W2
F7PB90B2
F5PB90B2

TECHNICAL SPECIFICATIONS

  • Dimensions (WxDxH): 900 x 550 x 1235mm
  • Cut-Out Size: N/A
  • Ducting: 150mm circular outlet
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 800m3/h
  • Finishes: Painted white steel
  • Controls: Electronic control
  • Model Codes: F7PB90W2

CONSUMPTION

  • Maximum Power: 280 W
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: None available

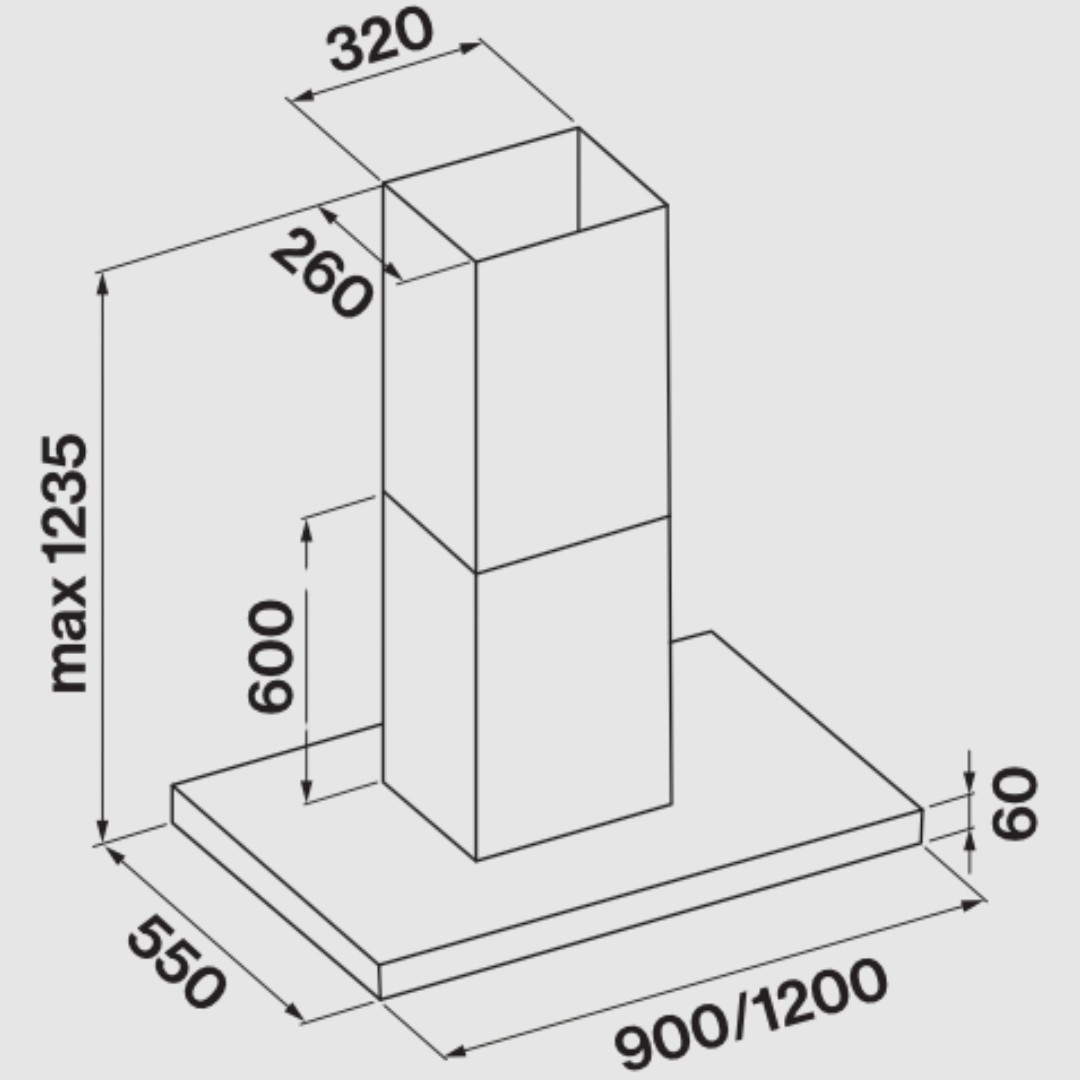

TECHNICAL SPECIFICATIONS

  • Dimensions (WxDxH): 900 x 550 x 1235mm
  • Cut-Out Size: N/A
  • Ducting: 150mm circular outlet
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 800m3/h
  • Finishes: Painted black steel
  • Controls: Electronic control
  • Model Codes: F7PB90B2

CONSUMPTION

  • Maximum Power: 280 W
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: None available

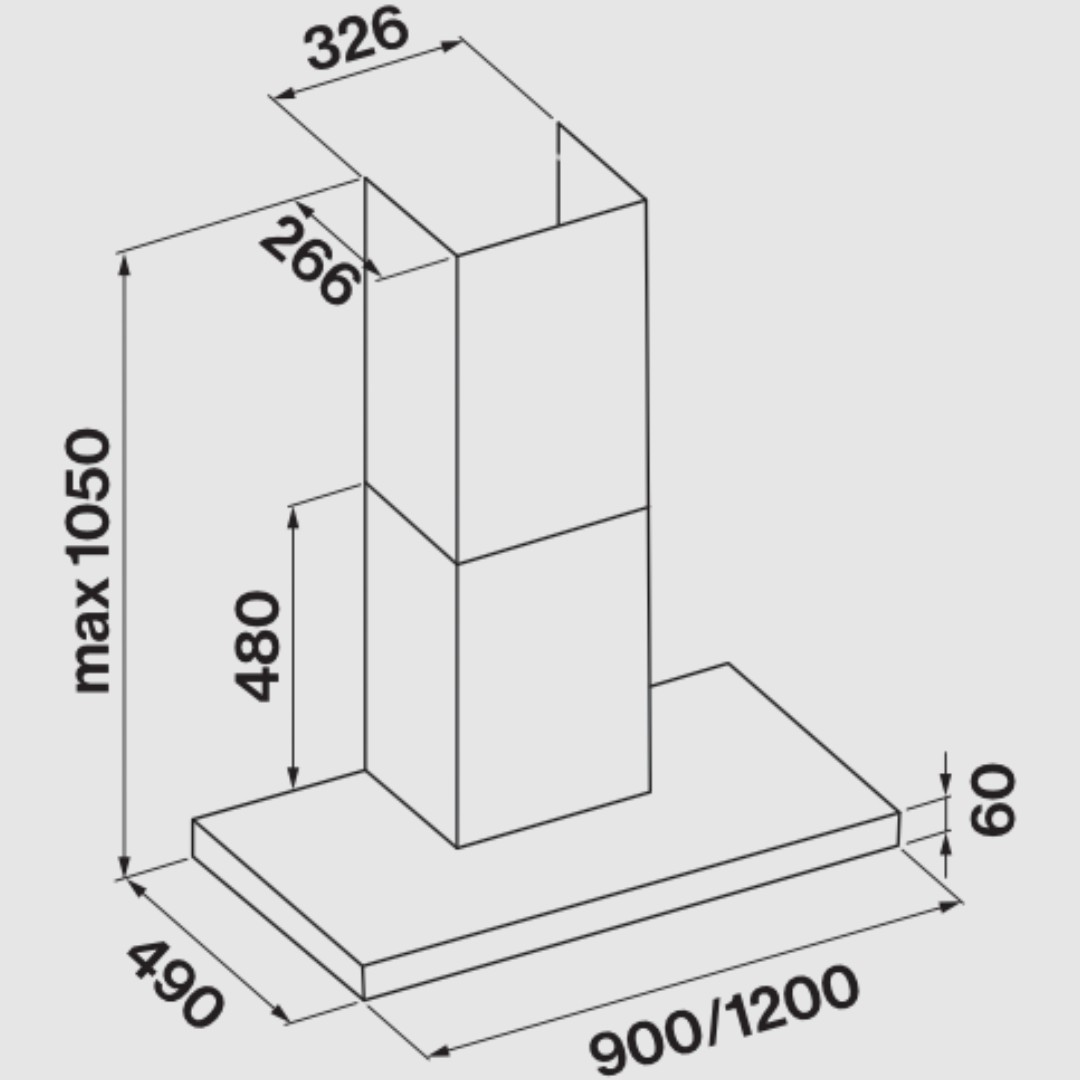

TECHNICAL SPECIFICATIONS

  • Dimensions (WxDxH): 900 x 490 x 1050mm
  • Cut-Out Size: N/A
  • Ducting: 150mm circular outlet
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 800m3/h
  • Finishes: Painted black steel
  • Controls: Electronic control
  • Model Codes: F5PB90B2

CONSUMPTION

  • Maximum Power: 280 W
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: None available
