ON BOARD - T-SHAPE

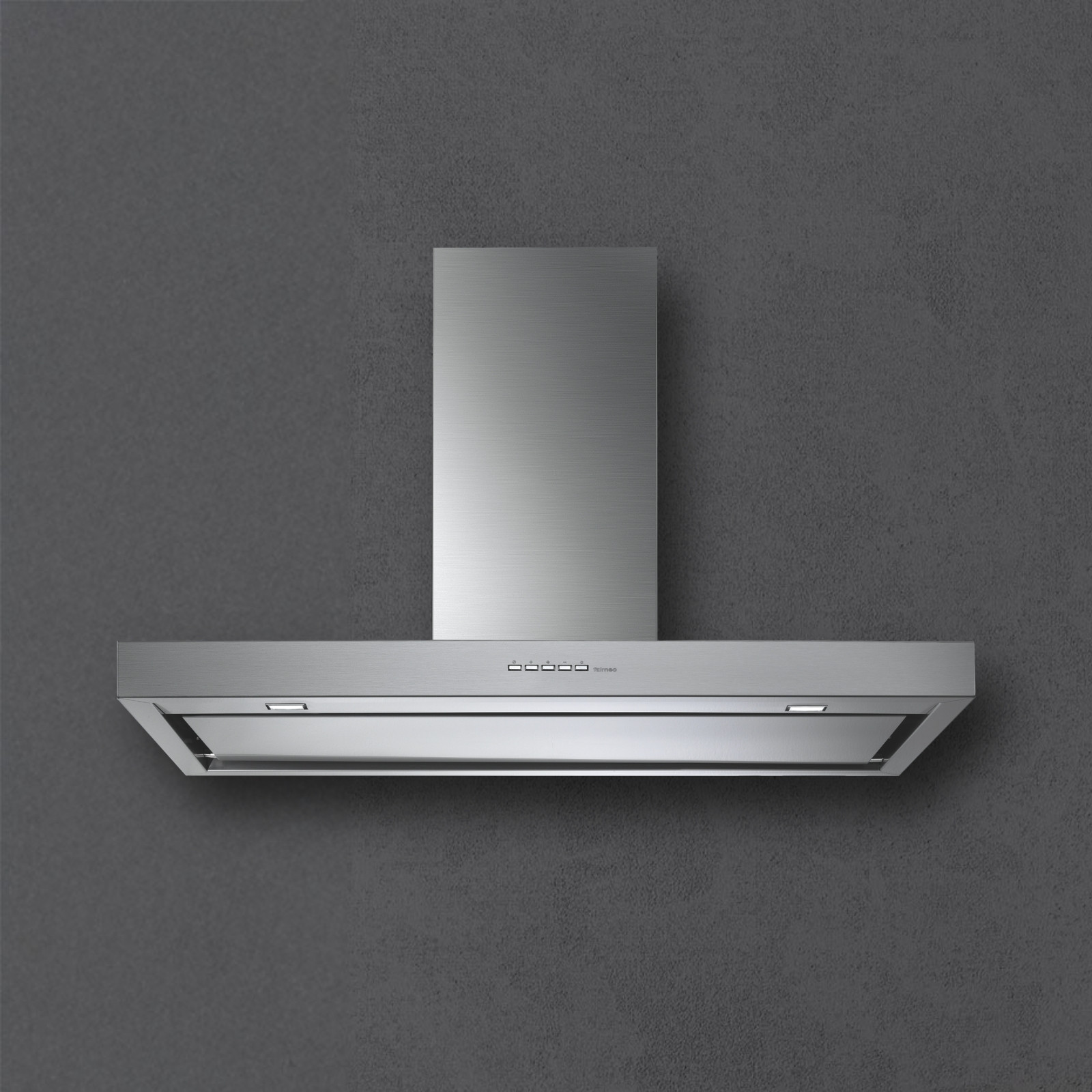

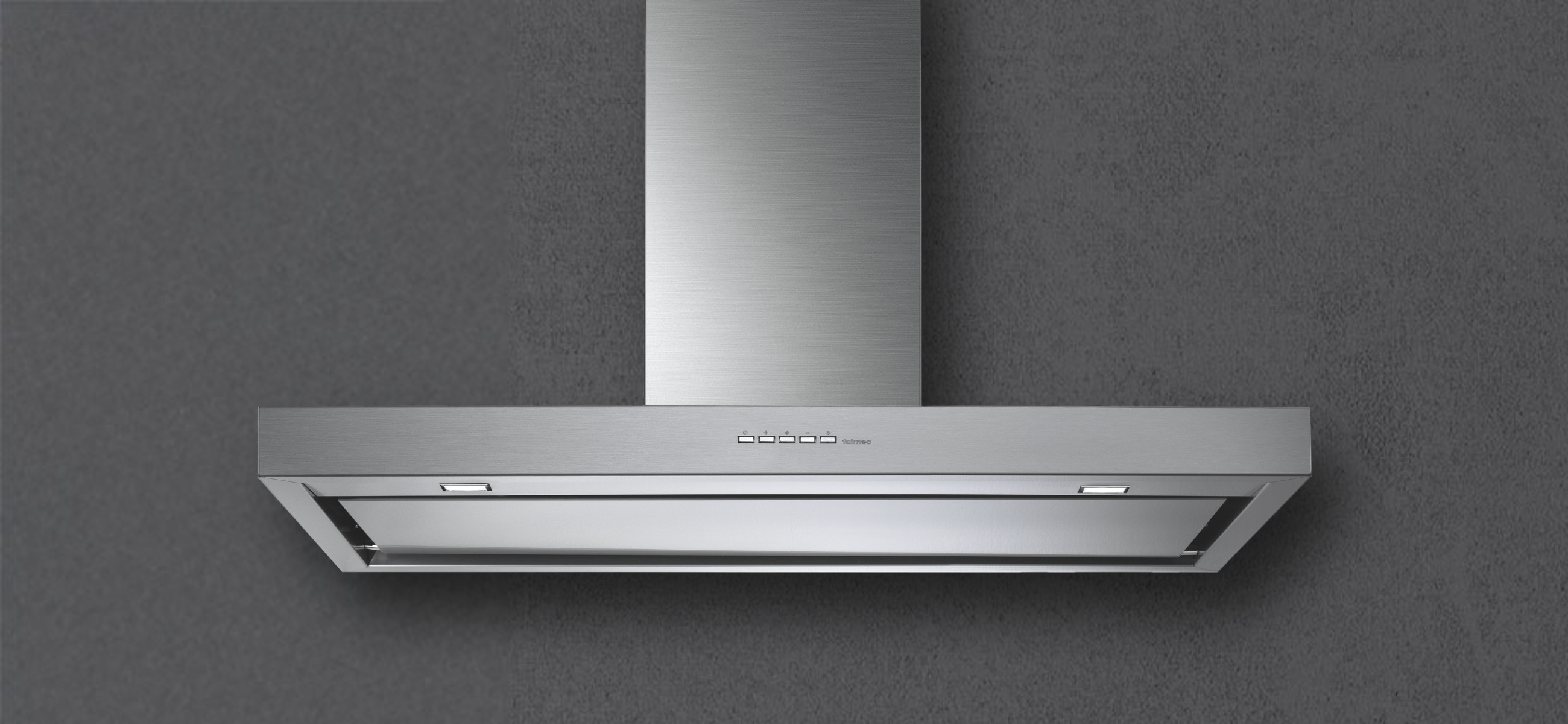

Plane Top

Minimal design. Maximum integration.

Plane Top is designed for seamless integration into overhead cabinetry, offering a clean, understated solution for modern kitchens. Its slim profile and linear form sit neatly within the cabinet, maintaining a refined, uncluttered aesthetic. Despite its discreet appearance, Plane Top delivers efficient extraction, effectively removing steam, grease and odours to keep your kitchen fresh and comfortable. Perimeter suction enhances performance, ensuring consistent results during everyday cooking.

Designed with practicality in mind, it features easy-to-clean filters and intuitive controls for effortless use and maintenance. Integrated LED lighting provides bright, even illumination across the cooktop, enhancing both visibility and ambience. Available in both Wall and Island configurations, Plane Top offers a perfect balance of discreet design, reliable performance and everyday functionality.

F5PT90S1
F5PT90S1

TECHNICAL SPECIFICATIONS

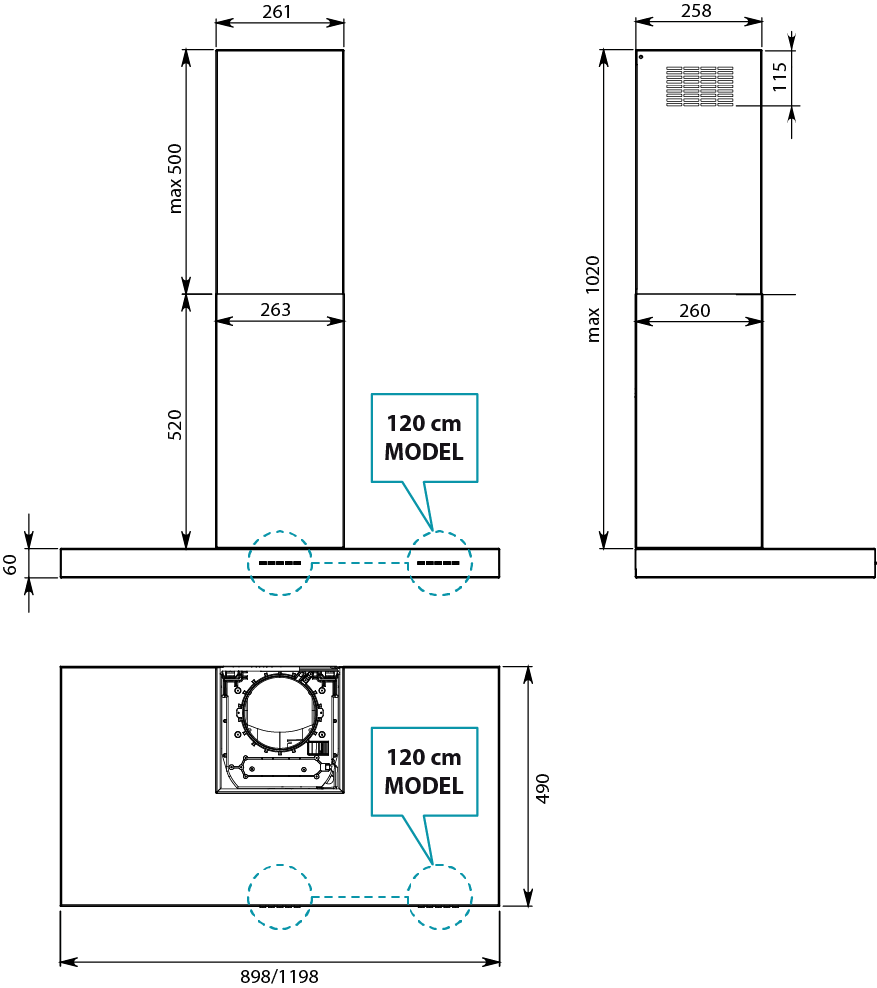

  • Dimensions (WxDxH): 898 x 490 x 1080mm
  • Cut-Out Size: N/A
  • Ducting: 150mm circular outlet
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 800m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes: F5PT90S1

CONSUMPTION

  • Maximum Power:
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: Charcoal Filter

TECHNICAL SPECIFICATIONS

  • Dimensions (WxDxH): 1198 x 490 x 1080mm
  • Cut-Out Size: N/A
  • Ducting: 150mm circular outlet
  • Cooking Surface Size: 100-130cm cooking surface
  • Motor Speeds Available: 800m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes: F5PT12S1

CONSUMPTION

  • Maximum Power:
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: Charcoal Filter

TECHNICAL SPECIFICATIONS

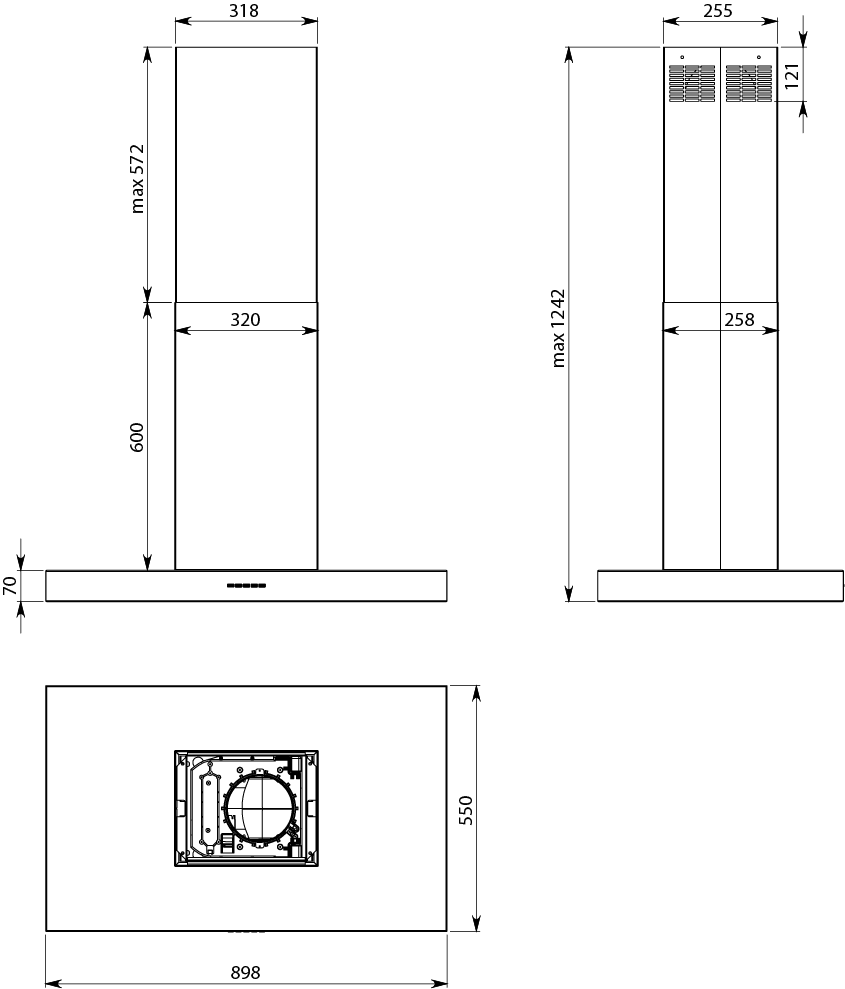

  • Dimensions (WxDxH): 898 x 550 x 1242mm
  • Cut-Out Size: N/A
  • Ducting: 150mm circular outlet
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 800m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes: F7PT90S1

CONSUMPTION

  • Maximum Power:
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: Charcoal Filter
