OFF BOARD - T-SHAPE

Trento

Professional outdoor performance. Flexible installation.

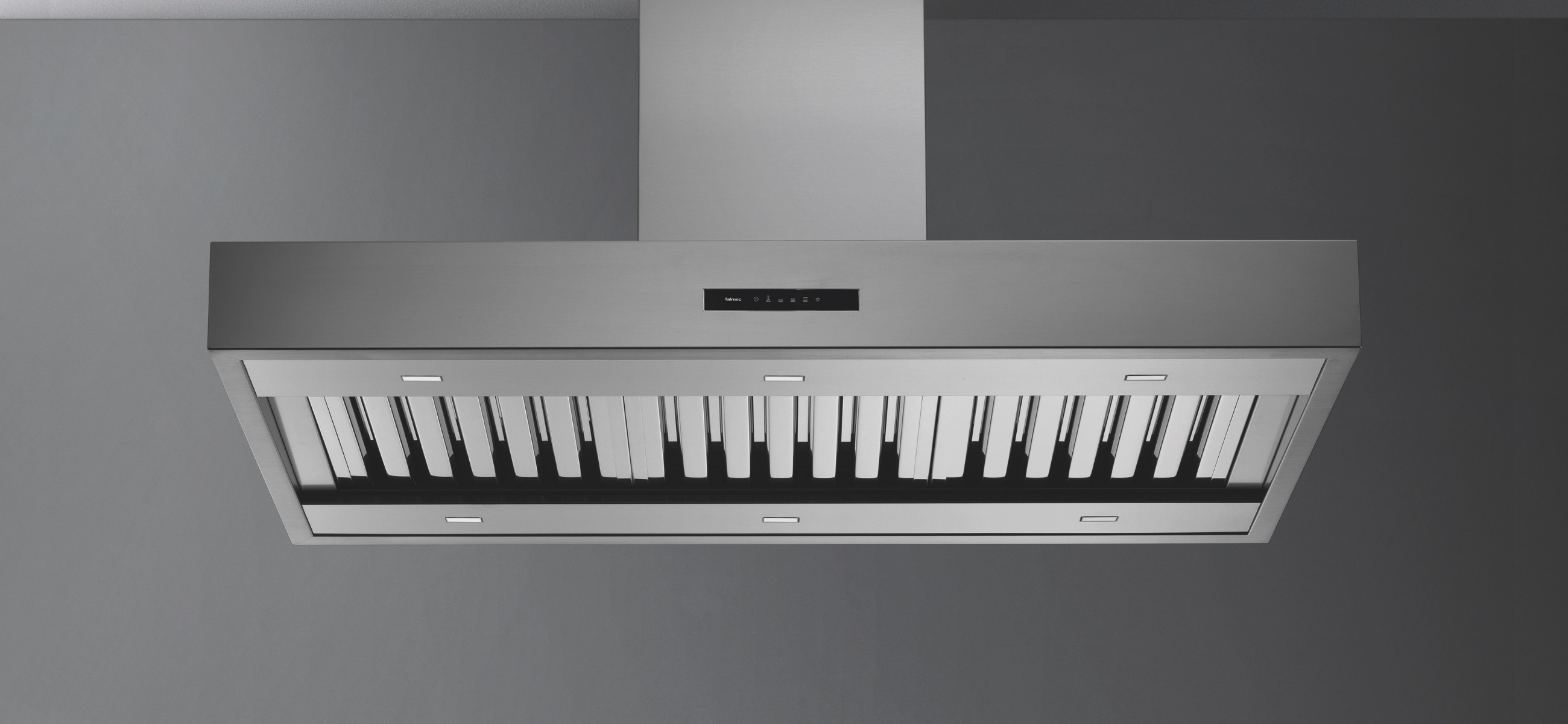

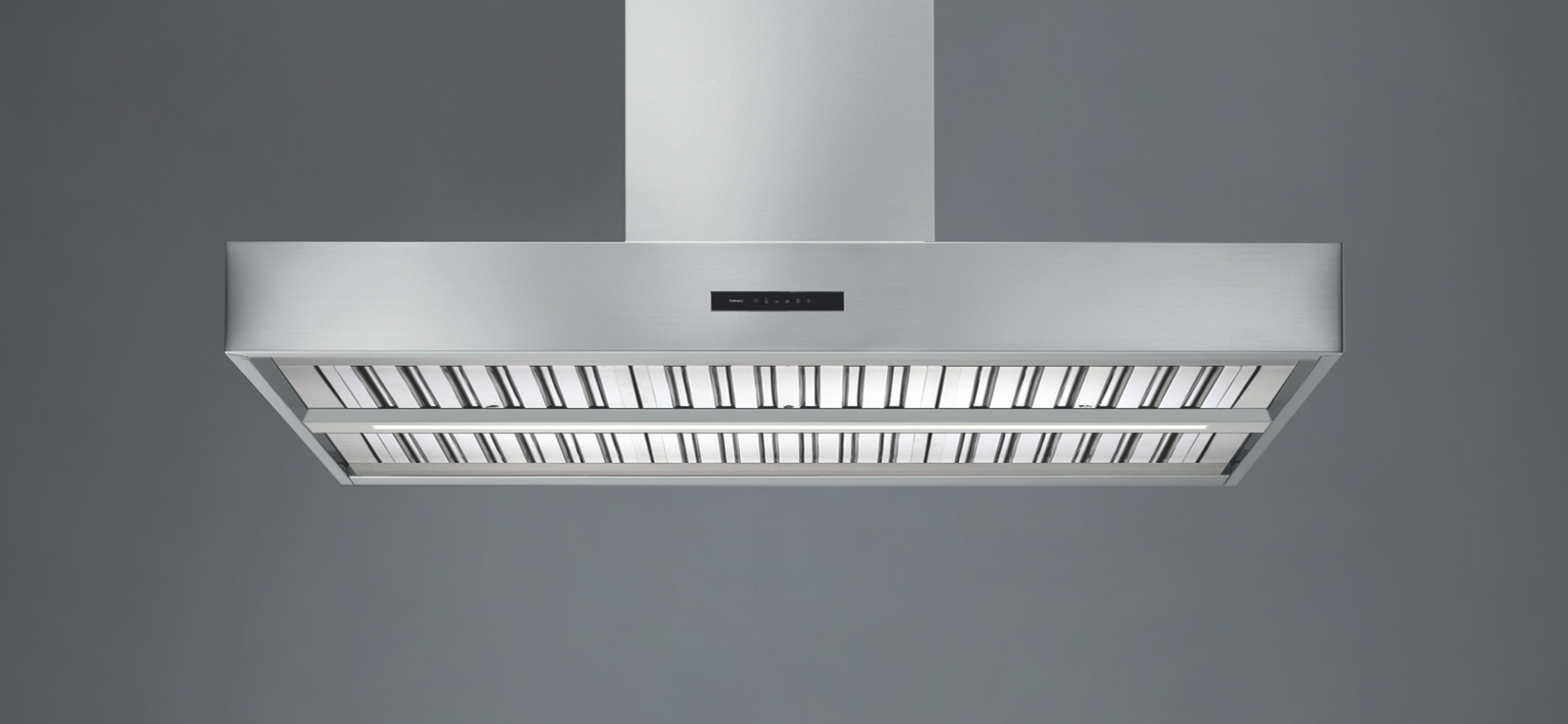

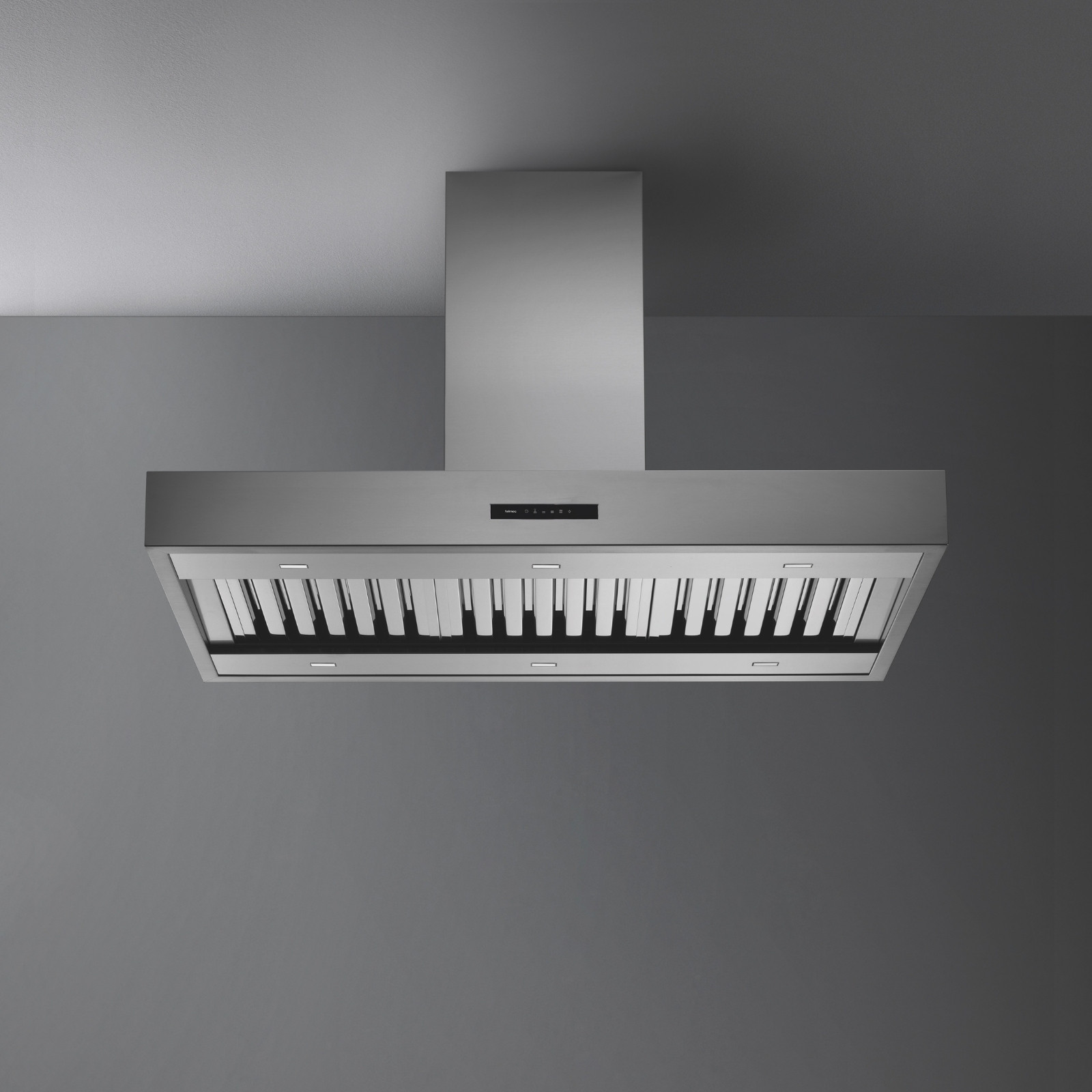

Trento is a high-performance canopy rangehood designed for both wall-mounted and island installations, making it a versatile solution for covered outdoor kitchens and BBQ entertaining areas. Built in durable Scotch-Brite stainless steel (AISI 304), it is engineered to withstand heat, grease and external conditions while maintaining a clean, professional appearance. At its core, Trento is designed for serious extraction, using a powerful off-board motor system (external roof or wall mounted) delivering up to 2010 m³/h airflow, ensuring rapid removal of smoke and cooking vapours even during high-intensity BBQ cooking.

The remote motor setup also significantly reduces noise in the cooking space, improving comfort in outdoor entertaining areas. Performance is supported by baffle filtration, designed for high grease capture and easy cleaning, along with a 200mm ducting system supplied with flexible ducting for efficient airflow management. Control is handled via integrated touch controls with 3 speeds plus boost, including a 15-minute timer function to ensure complete extraction after cooking. Lighting is delivered through high-efficiency LED strips that provide full coverage across the cooking surface, ensuring clear visibility during preparation and cooking.

Available in both wall and island configurations, Trento is designed for large cooking surfaces (90–130cm), making it ideal for outdoor kitchens where power, durability and flexibility are essential.

Island F7TN12S1
Wall F5TN12S1

TECHNICAL SPECIFICATIONS

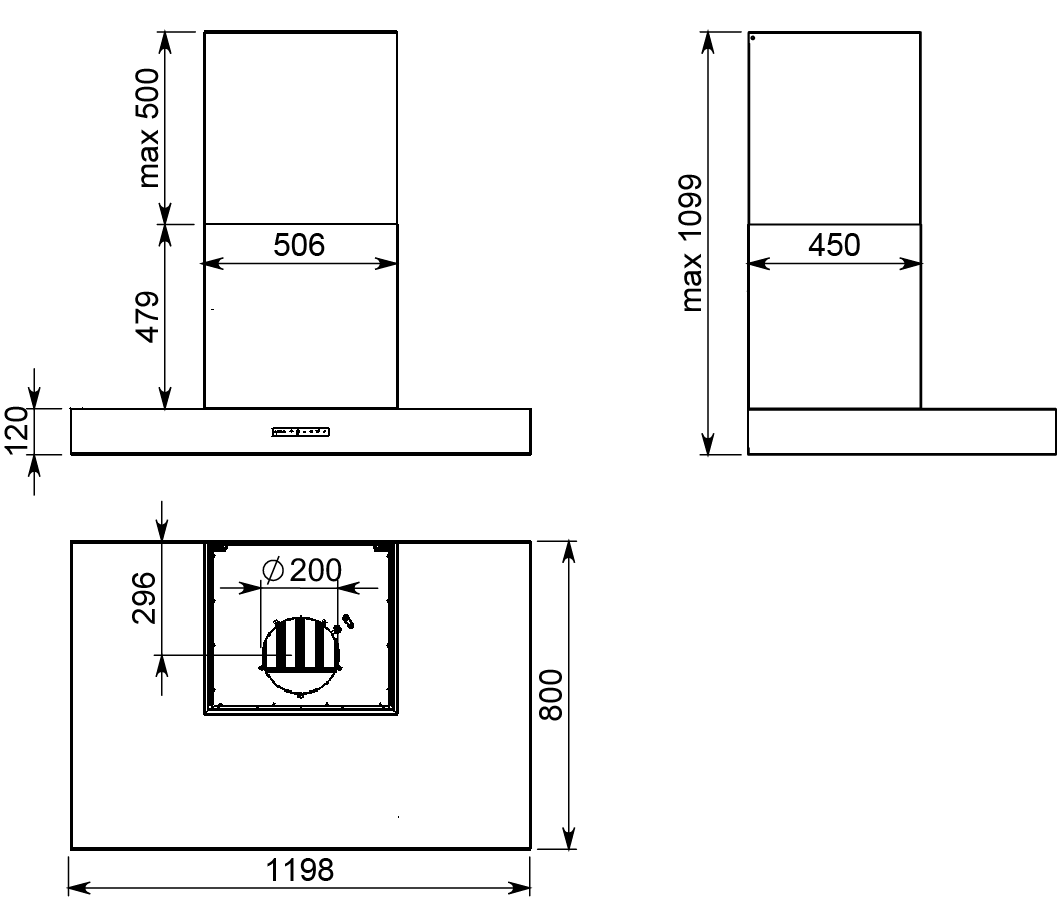

  • Dimensions (WxDxH): 1198 x 800 x 1099mm
  • Cut-Out Size: N/A
  • Ducting: 200mm circular outlet (6m of Q6 duct supplied)
  • Cooking Surface Size: 90-130cm cooking surface
  • Motor Speeds Available: 2010m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes:
    F5TN12S1-ER2010 (2010m3/h - External Roof Motor)
    F5TN12S1-EW2010 (2010m3/h - External Wall Motor)

CONSUMPTION

  • Maximum Power:
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: External Installation Kit, Q6 Duct Extensions, Roundback Draft Damper, Wireless Remote

TECHNICAL SPECIFICATIONS

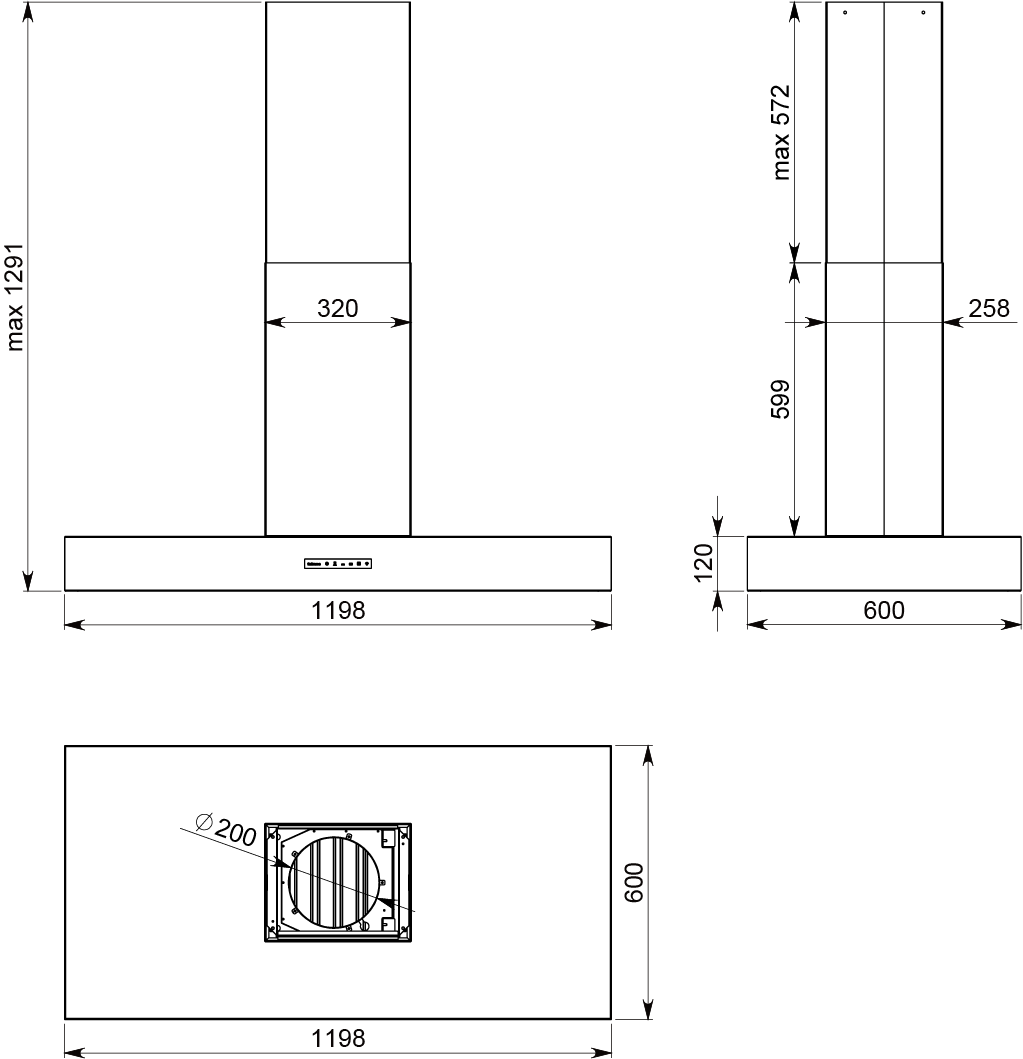

  • Dimensions (WxDxH): 1198 x 600 x 1291mm
  • Cut-Out Size: N/A
  • Ducting: 200mm circular outlet (6m of Q6 duct supplied)
  • Cooking Surface Size: 90-130cm cooking surface
  • Motor Speeds Available: 2010m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes:
    F7TN12S1-ER2010 (2010m3/h - External Roof Motor)
    F7TN12S1-EW2010 (2010m3/h - External Wall Motor)

CONSUMPTION

  • Maximum Power:
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: External Installation Kit, Q6 Duct Extensions, Roundback Draft Damper, Wireless Remote
