OFF BOARD - T-SHAPE

Treviso+

Professional canopy design. High-performance off-board extraction.

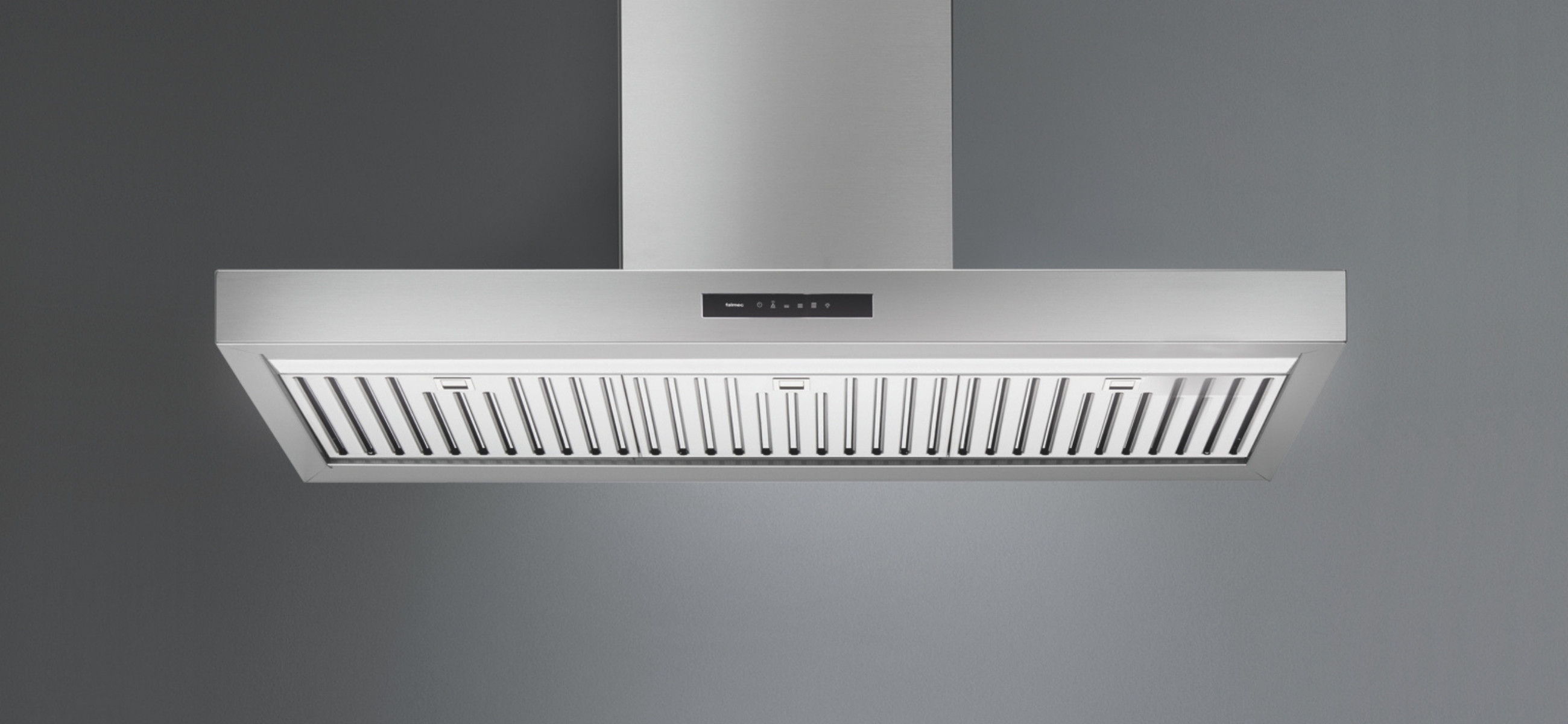

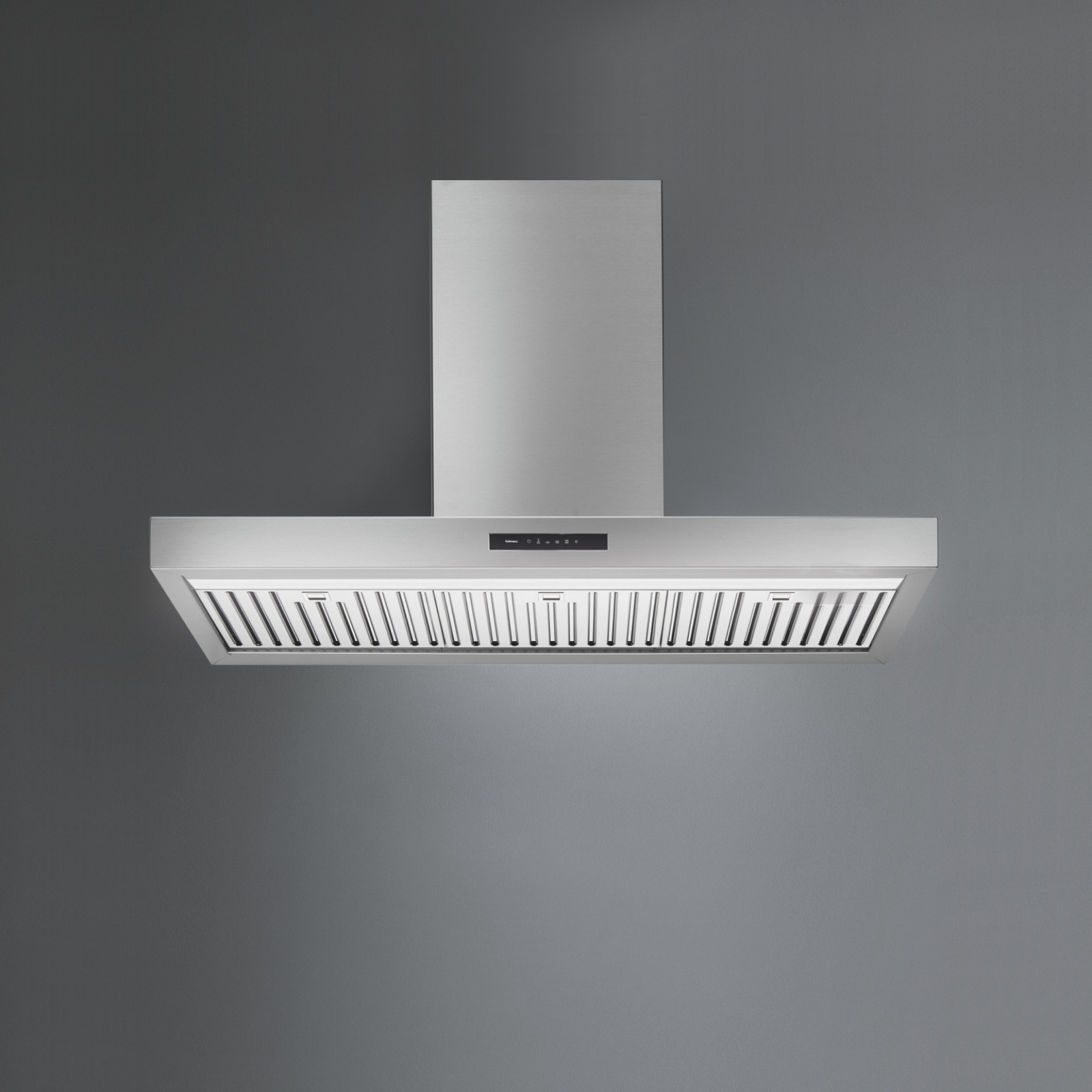

Treviso+ is a robust, T-shaped canopy rangehood designed for wall installation, offering flexibility for large kitchen layouts and serious cooking environments. Built in Scotch-Brite finished AISI 304 stainless steel, it delivers durability and a clean, professional aesthetic suited to contemporary kitchens and outdoor-style entertaining spaces. At its core, Treviso+ is engineered for high-performance extraction using an off-board motor system, where the motor is installed externally (roof or wall) to reduce noise in the kitchen while maintaining strong airflow capacity. Depending on configuration, it delivers up to 1140 m³/h (and up to higher options in system variants), making it suitable for intensive cooking and larger cooktops.

A 200mm ducting system with supplied flexible ducting ensures efficient air movement and installation flexibility, supporting long duct runs where required. Treviso+ is fitted with baffle filters, designed for high grease capture and durability, and fully dishwasher-safe for easy maintenance in high-use environments. Control is managed through a touch interface with multiple speeds plus boost and a 15-minute timer function, ensuring vapours are fully cleared after cooking. Integrated Dynamic LED lighting provides even illumination across the cooking surface, improving visibility during preparation and cooking while maintaining a clean, integrated look.

Treviso+ is designed for kitchens that prioritise power, durability and professional-grade performance, particularly where external motor installation is preferred for quieter operation.

FP5TV90S2

TECHNICAL SPECIFICATIONS

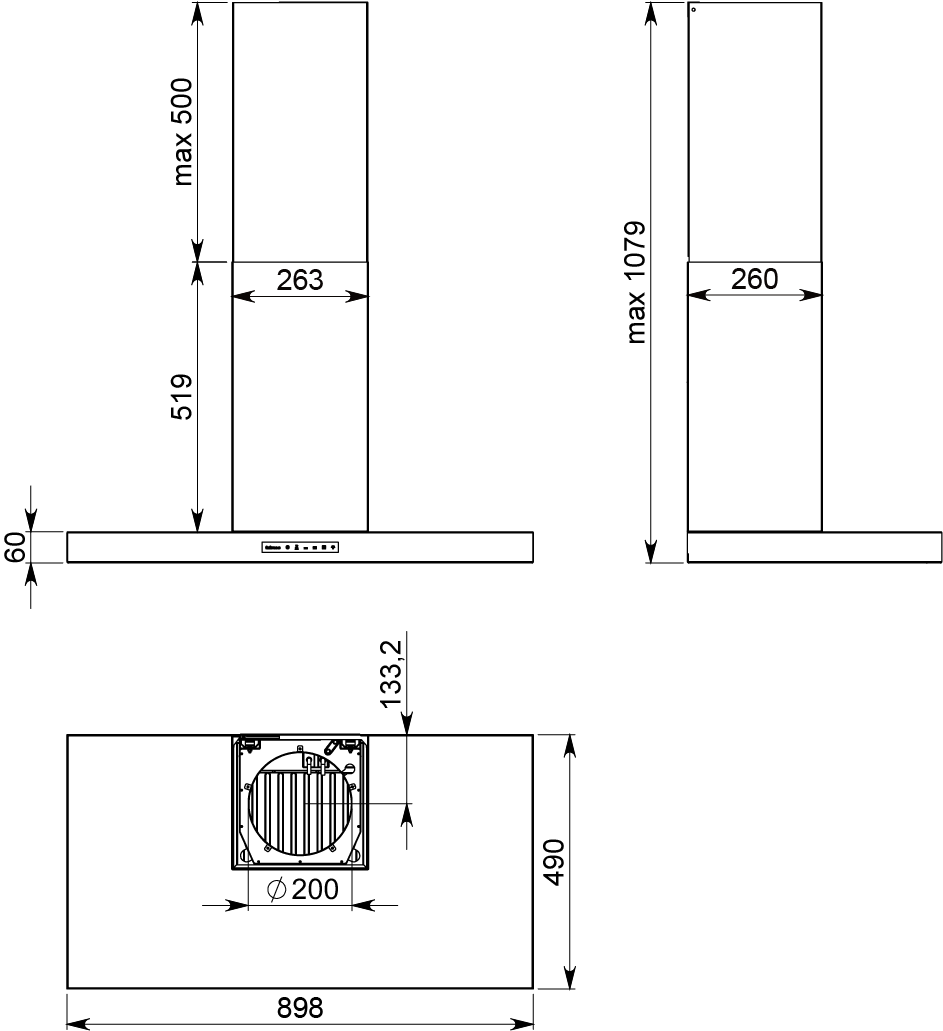

  • Dimensions (WxDxH): 898 x 490 x 1079mm
  • Cut-Out Size: N/A
  • Ducting: 200mm circular outlet (6m of Q6 duct supplied)
  • Cooking Surface Size: 75-100cm cooking surface
  • Motor Speeds Available: 765m3/h | 1140m3/h
  • Finishes: Scotch brite stainless steel (AISI 304)
  • Controls: Electronic control
  • Model Codes:
    FP5TV90S2-IR765 (765m3/h - In Roof Motor)
    FP5TV90S2-ER765 (765m3/h - External Roof Motor)
    FP5TV90S2-EW765 (765m3/h - External Wall Motor)
    FP5TV90S2-IR1140 (1140m3/h - In Roof Motor)
    FP5TV90S2-ER1140 (1140m3/h - External Roof Motor)
    FP5TV90S2-EW1140 (1140m3/h - External Wall Motor)

CONSUMPTION

  • Maximum Power:
  • Voltage: 220-240V 50-60Hz

ACCESSORIES

  • Other Accessories: External Installation Kit, Q6 Duct Extensions, Roundback Draft Damper, Wireless Remote
